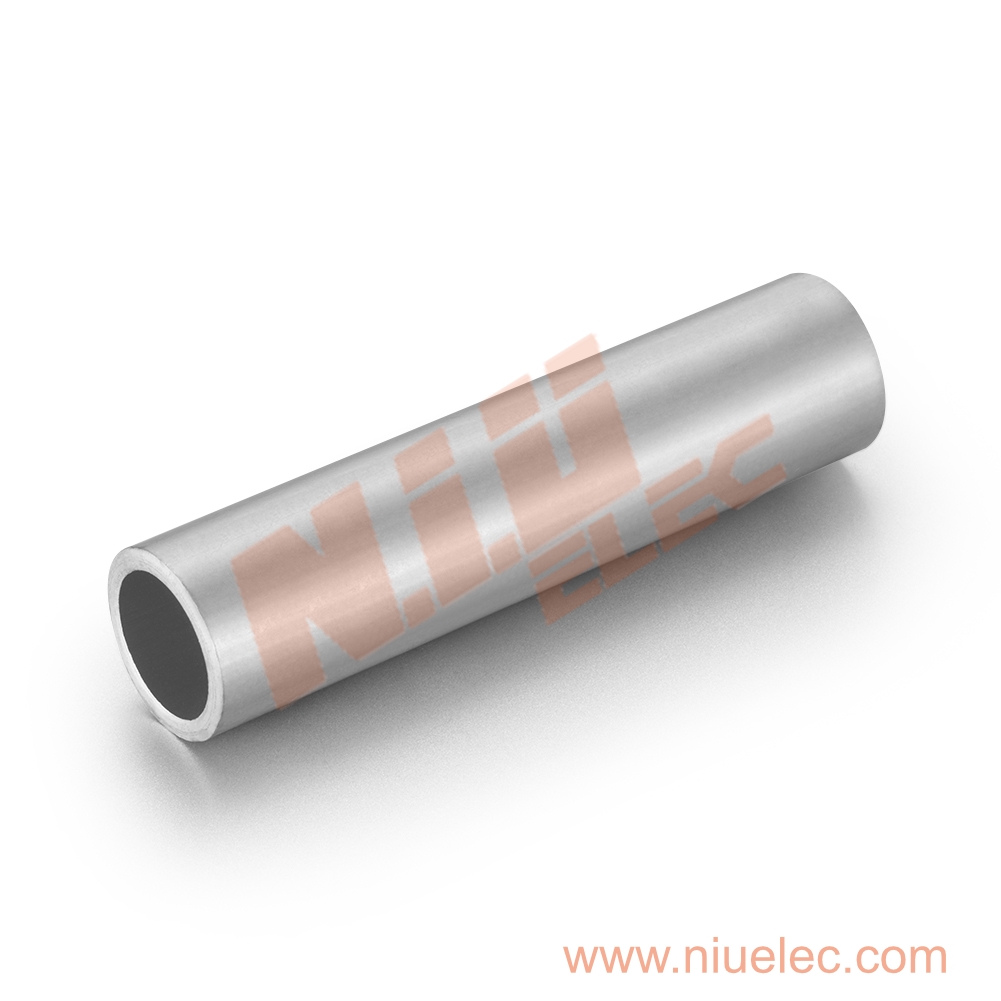

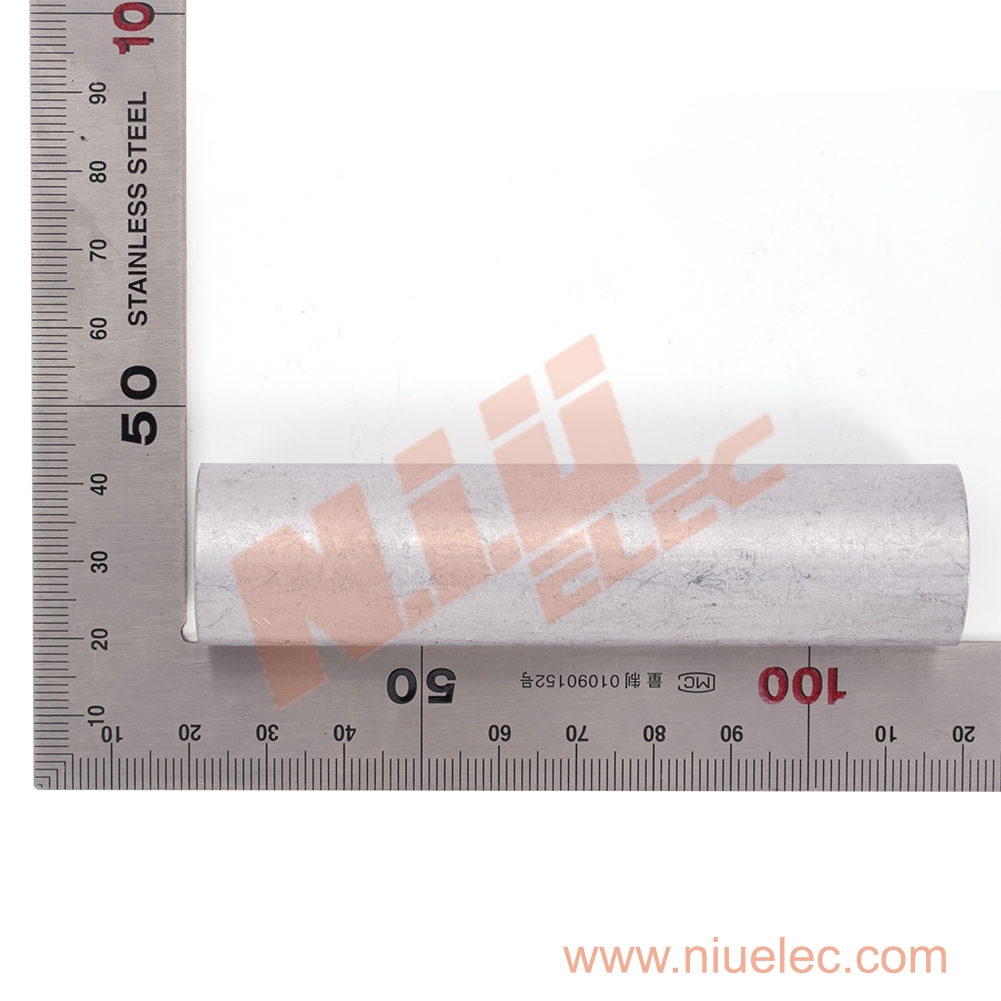

GL-1 Aluminium Crimp Connector

Description

Application:
GL-1 Aluminum Connectors Tube is suitable for connecting the circular wire and hemicycle wire in distribution equipment or power supply cables.



Features:

1. GL-1 Aluminum Connectors Tube is suitable for aluminum conductor
2. The barrels capped are filled with joint compound to avoid oxidization.
3. Material: AL≥99.5%



Item No. D±0.5 d±0.3 L±2
GL-1-10 9 5.0 53
GL-1-16 10 6.0 60
GL-1-25 11 7.5 62
GL-1-35 12 8.5 66
GL-1-50 15 11.0 72
GL-1-70 17 12.4 82
GL-1-95 19 14.0 86
GL-1-120 21 15.6 92
GL-1-150 23 17.6 96
GL-1-185 25 19.4 103
GL-1-240 27 21.0 113
GL-1-300 32 24.0 125
GL-1-400 37 27.0 150
