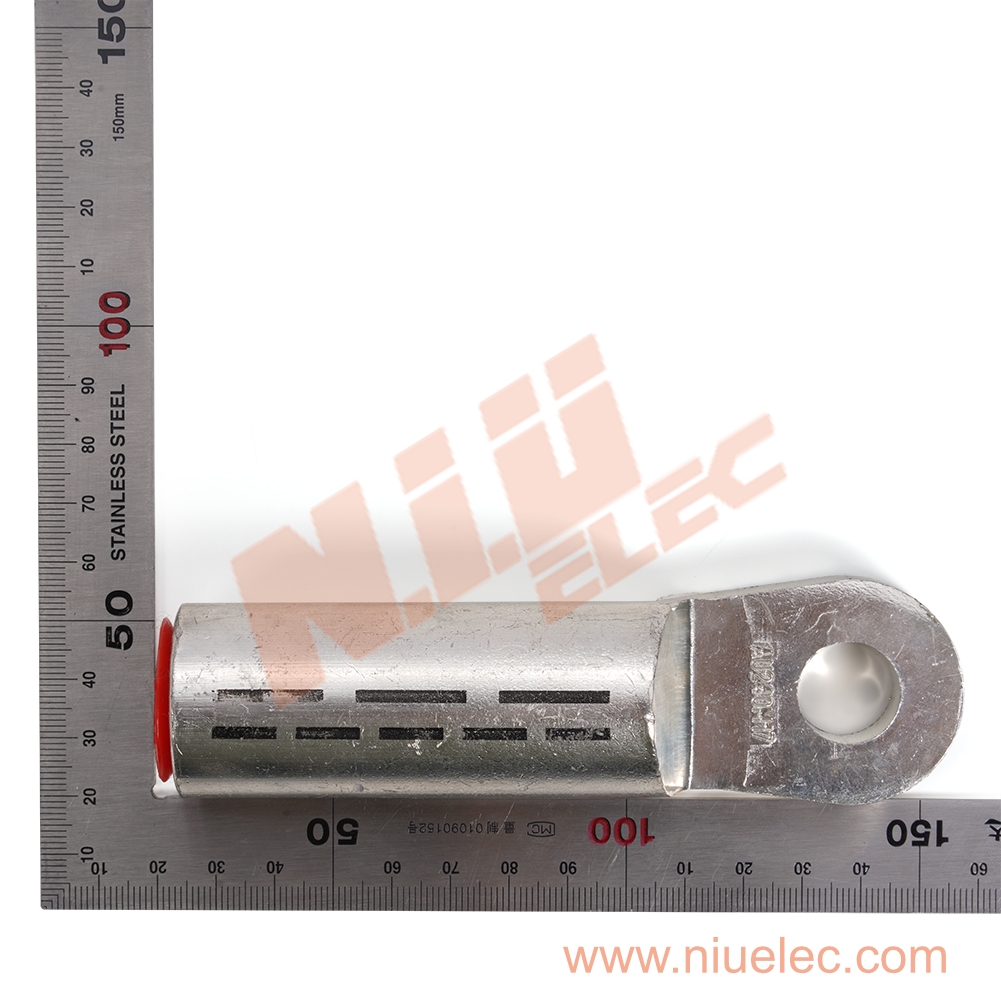

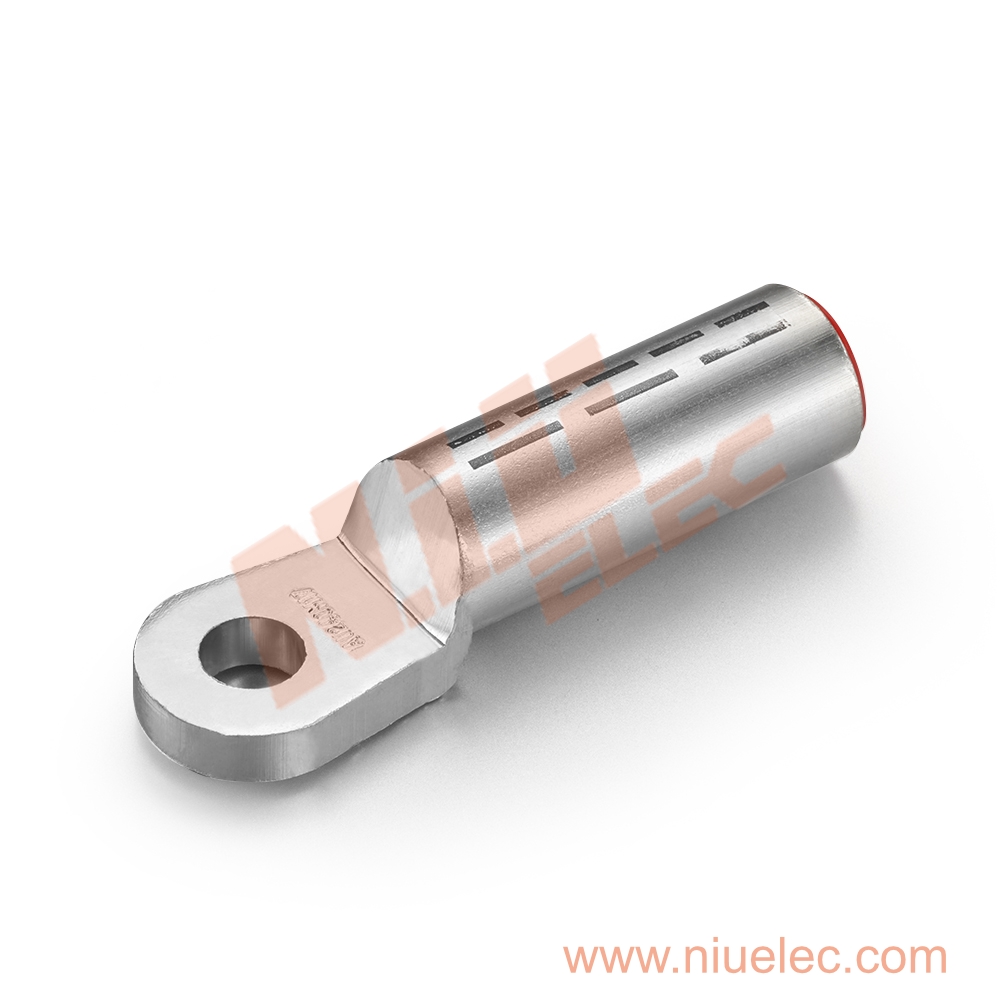

Aluminium connector
Description
Application:
AU aluminium lugs are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.
Features:
1. Clear markings on barrel to indicate correct crimping location.
2. In accordance with DIN46329.
3. The solid palm eliminates the ingress of moisture.
4. Prefilled with jointing compound and sealed with caps.
5. Material: AL≥99.5%
6. Surface: electro tin plated.
| Item No. | Φ±0.5 | d±0.3 | L±2 | L1±2 |
| AU-16 | 8.4 | 5.8 | 60.0 | 29 |
| AU-25 | 10.5 | 6.8 | 62.5 | 29 |
| AU-35 | 10.5 | 8.0 | 77.0 | 41 |
| AU-50 | 10.5 | 9.8 | 78.5 | 42 |
| AU-70 | 10.5 | 11.2 | 85.0 | 51 |
| AU-95 | 13.0 | 13.2 | 90.0 | 55 |
| AU-120 | 13.0 | 14.7 | 96.0 | 55 |
| AU-150 | 13.0 | 16.3 | 106 | 59 |
| AU-185 | 13.0 | 18.3 | 108 | 59 |
| AU-240 | 17.0 | 21.0 | 124 | 69 |
| AU-300 | 17.0 | 23.3 | 125 |
69 |
