Aluminium connector

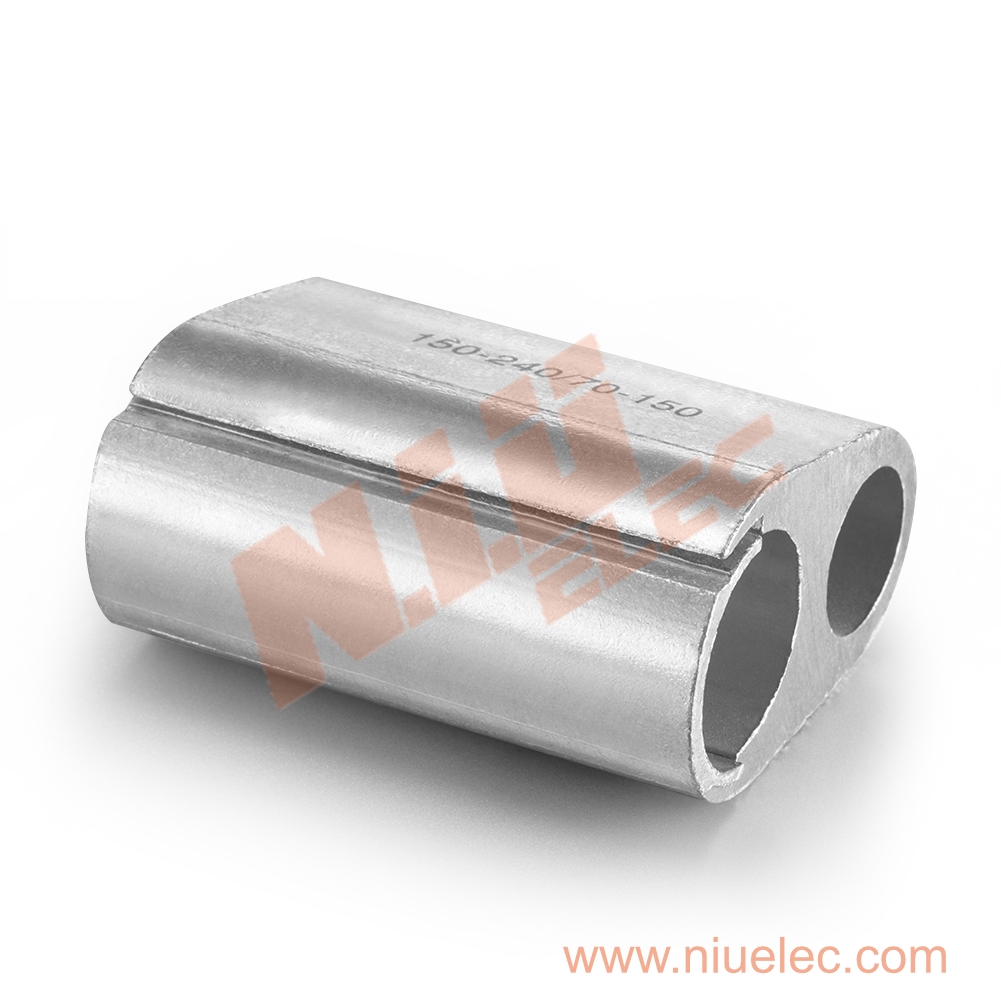

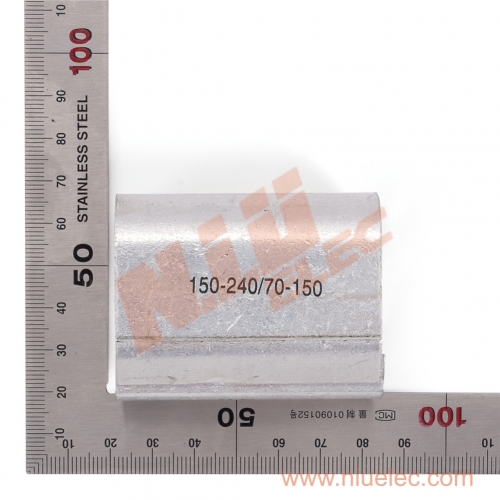

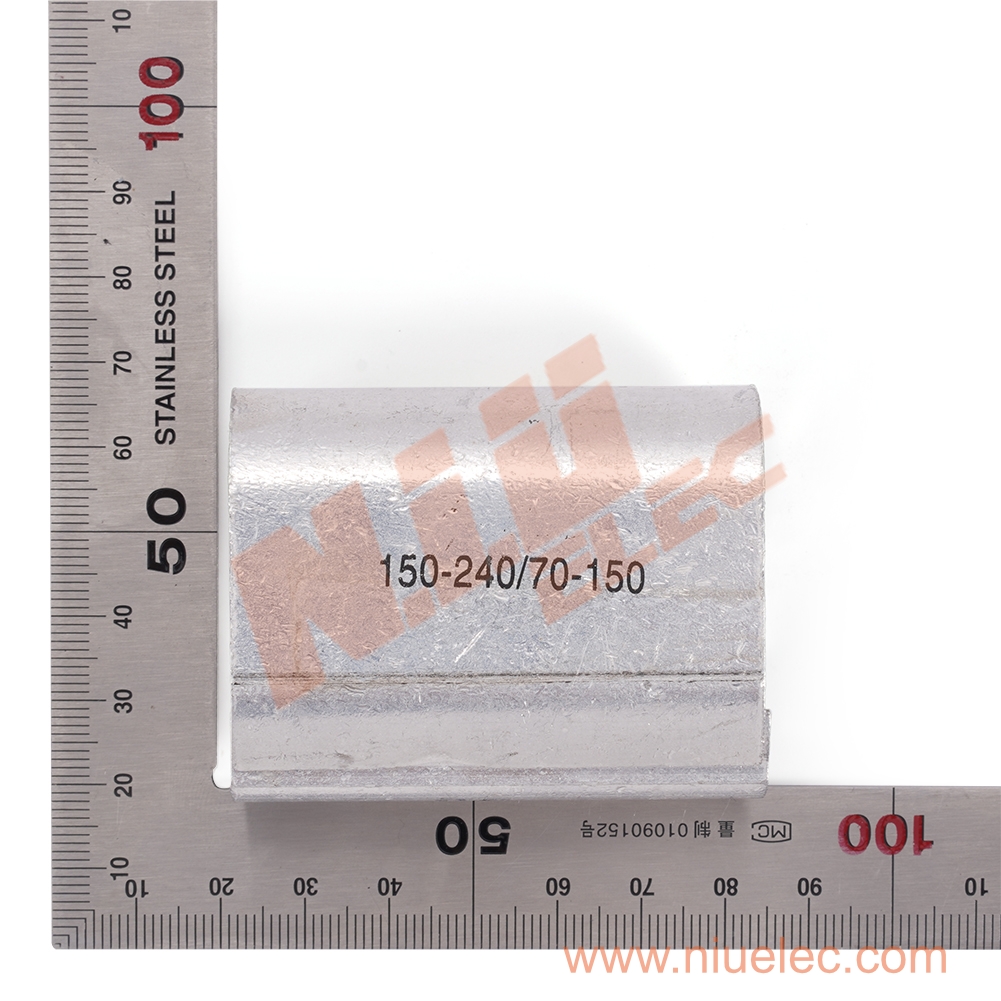

CTO Type Aluminium Connector

Item No.: 241
Features:
INQUIRY
Description

Application:
CTO Type Aluminum Connector is suitable for branching identical cross-sections and no need to split the main conductor.

Features:
1. It was use for wide range conductor .
2. Massive aluminum design minimizes corrosion due to galvanic corrosion.
3. Constrains conductors while installer completes crimp.
4. Conductors are separated by the shape of the connector.
5. Simplifies installation can reduce installed cost.

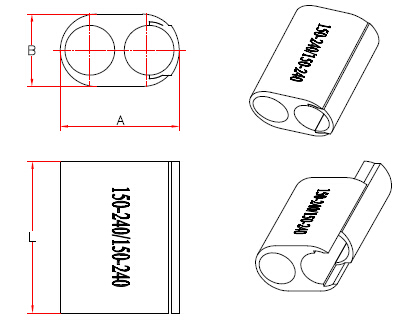

Item No. Hole1 Hole2 Dimensions
A B L
CTO-1 50-70 50-70 32.5 17.8 45
CTO-2 50-70 70-150 37 24.7 61
CTO-3 50-70 150-240 47 30 60.6
CTO-4 70-150 70-150 43.5 25 60
CTO-5 70-150 150-240 47 30 60.5
CTO-6 150-240 150-240 50 30 65
