CAPG Copper and Aluminium Parallel Groove Clamp

Item No.: 238
Description

Application:
The CAPG parallel groove clamps are designed to connect aluminium conductors and copper conductors.

Advantages:
1)Advanced forging technology enhances the mechanical strength of the clamp.
2)Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
3)Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel.
4)Pressure pad is applied to achieve uniform pressure along the clamp.



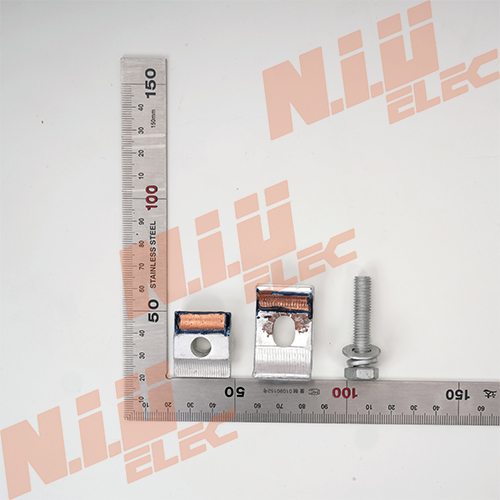

CAPG-A Series



Item No. Size(mm²) Bolt

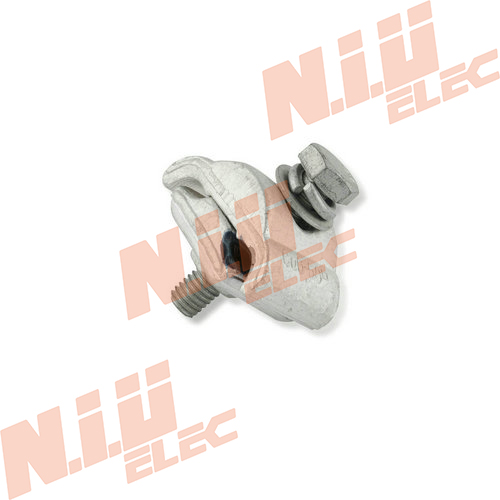

CAPG-A1

Cu 6-50  Al16-70

Single bolt
CAPG-A2 Cu 10-95  Al25-150  Single bolt

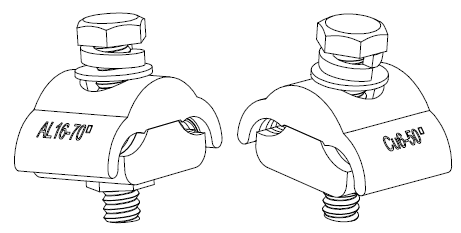

CAPG-A1 Cu6-50 AL16-70 Drawing.pdf

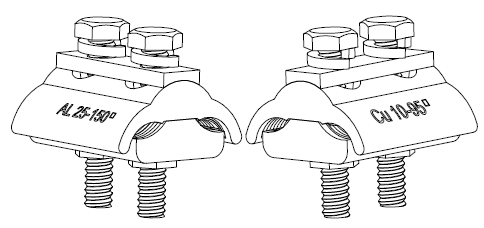

CAPG-A2 Cu10-95 AL25-150 Drawing.pdf





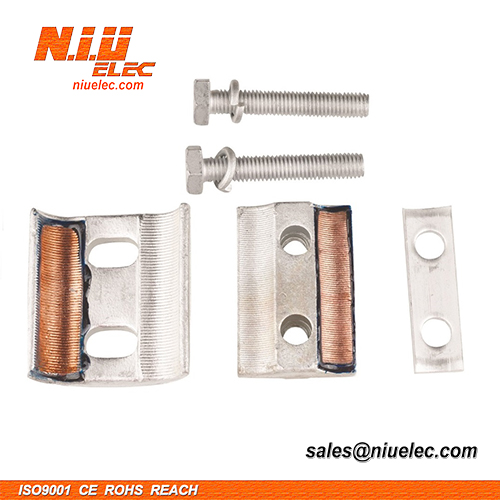

CAPG-B Series

Item No. Size(mm²) Bolt

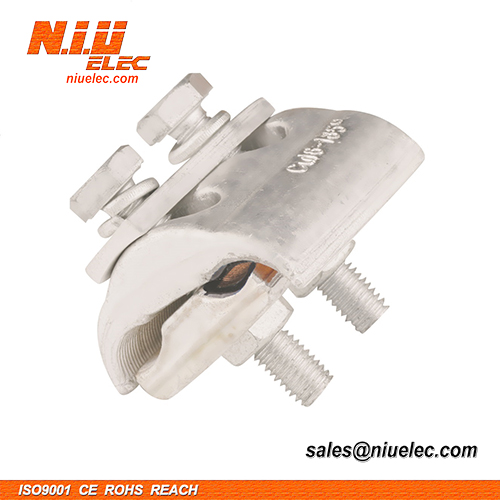

CAPG-B1 Cu6-50  Al16-70  Double bolt
CAPG-B2 Cu10-95  Al25-150  Double bolt
CAPG-B3 Cu25-185  Al35-240  Double bolt

CAPG-B1 Cu6-50 AL16-70 Drawing.pdf

CAPG-B2 Cu10-95 AL25-150 Drawing.pdf

CAPG-B3 Cu25-185 AL35-240 Drawing.pdf



CAPG-C Series



Item No. Size(mm²) Bolt

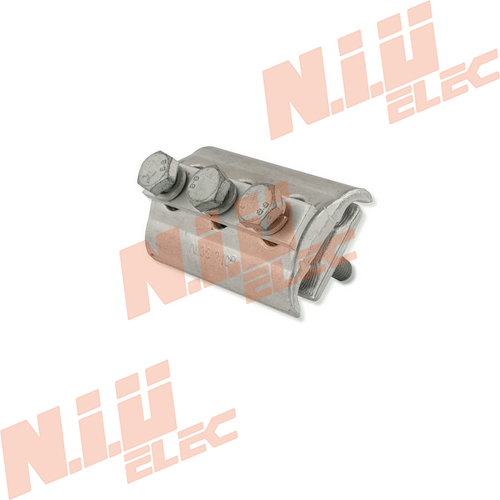

CAPG-C1 Cu6-50  Al16-70  Tri-bolt
CAPG-C2 Cu10-95  Al25-150  Tri-bolt
CAPG-C3 Cu25-185  Al35-240  Tri-bolt
CAPG-C4 Cu35-240  Al35-300  Tri-bolt

CAPG-C1 Cu6-50 AL16-70 Drawing.pdf

CAPG-C2 Cu10-95 AL25-150 Drawing.pdf

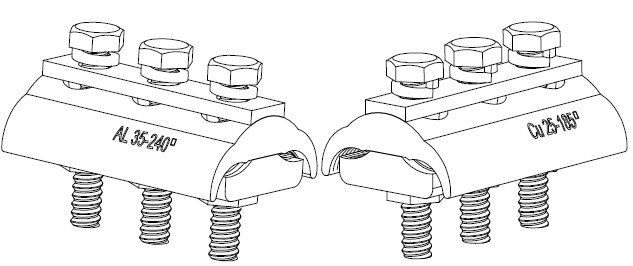

CAPG-C3 Cu25-185 AL35-240 Drawing.pdf

CAPG-C4 Cu35-240 AL35-300 Drawing.pdf
