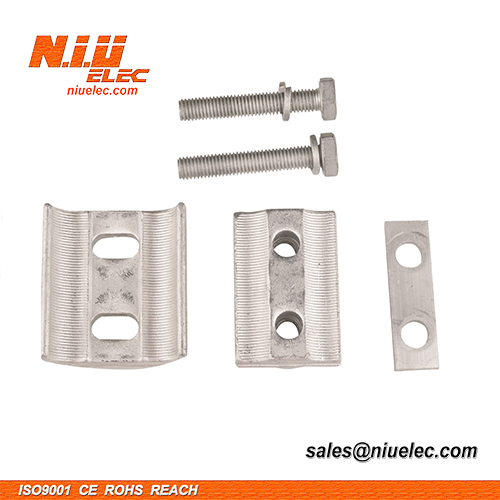

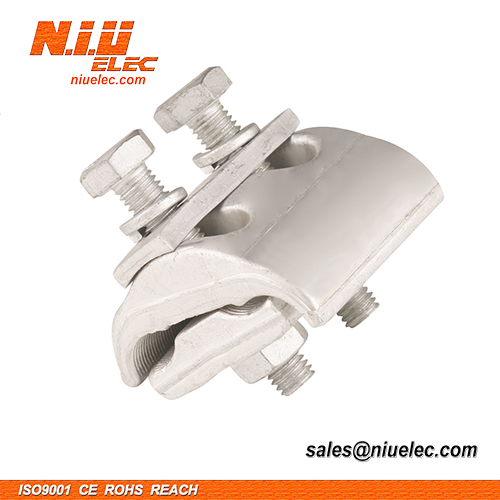

APG Aluminum PArallel Groove Clamp

Item No.: 236
Description

Application:
The APG parallel groove clamps are designed to connect two aluminium conductors.

Advantages:
1)Advanced forging technology enhances the mechanical strength of the clamp.
2)Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
3)Clamp body is made of aluminium with excellent electrical conductivity.
4)Gross-grooved clamp channels enhance both mechanical pullout strength and electrical conductivity.
5)Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and Stainless steel
6)Pressure pad is applied to achieve uniform pressure along the clamp.


APG-A Series

Item No. Size(mm²) Bolt
APG-A1 AL16-70 Single bolt
APG-A2 AL16-150 Single bolt

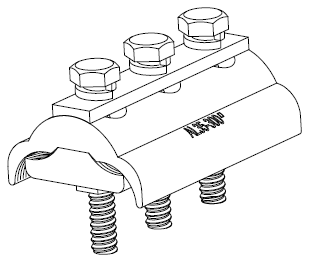

APG-A1 16-70 Drawing.pdf

APG-A2 16-150 Drawing.pdf

APG-B Series

Item No. Size(mm²) Bolt
APG-B1 AL 6-35 Double bolt
APG-B2 AL16-70 Double bolt
APG-B3 AL16-150 Double bolt
APG-B4 AL25-240 Double bolt

APG-B2 16-70 Drawing.pdf

APG-B3 16-150 Drawing.pdf

APG-B4 25-240 Drawing.pdf

APG-C Series

Item No. Size(mm²) Bolt
APG-C1 AL16-70 Tri-bolt
APG-C2 AL16-150 Tri-bolt
APG-C3 AL25-240 Tri-bolt
APG-C4 AL35-300 Tri-bolt

APG-C2 16-150 Drawing.pdf

APG-C3 25-240 Drawing.pdf

APG-C4 35-300 Drawing.pdf

Parallel groove clamp section Aluminium pg clamp CAPG Copper and Aluminium Parallel Groove Clamp
