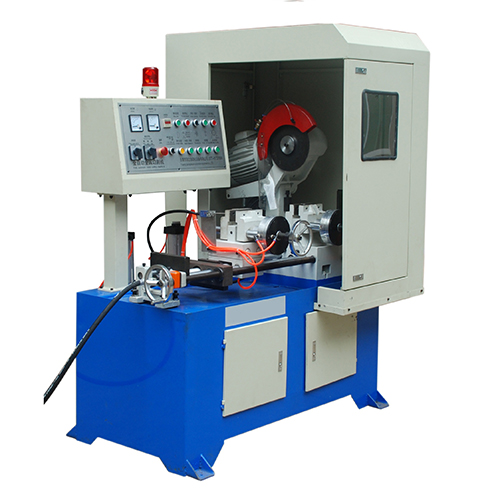

315ZL Full automatic pipe cutting machine

Feature:
1.The use of gas and liquid transformation, feeding smooth cutting.
2.A root can be cut, can set multiple feed
3.PLC control action,the operation is simple
4.Floating chuck feeding ,size accurate ,do not hurt the workpiece surface
5.Equipped
Description

Video:


Project Technical  parameters
Host machine

4-6 change pole1.5-2.2KW

Apply saw blade Φ275/275/315/350
Cooling-water pump 90W
Maximum opening of clamp 120mm
Compressed air 0.6-0.8MPa
Fabrication Length 3≤ L≤600( one fabrication length)
Machine size/weight 1600*1100*1450/520Kg



Profile Maximum cutting ability ( Cutting precision ±0.1mm)
Circular tube Φ90*3(thickness)
Square tube

85*85*3(thickness)

Rectangular tube

80*100

Angle iron 90*90
Round bar  (aluminum) Φ70
Square rod  (aluminum) 60*60
Solid bar (aluminum) Φ38
