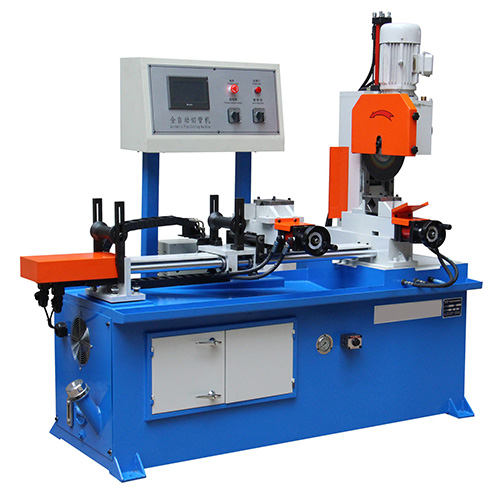

355ZL Full automatic pipe cutting machine

Feature:
1.Full hydraulic control system,servo motor feed
2.According to customer matching with single tail dial system
3.Cutting head multi axis gear transmission
Description

Video:



Project Technical  parameters
Host machine

2-4 change pole 2.4-3K

Apply saw blade Φ275-Φ400
Cooling-water pump 90W
Maximum opening of clamp 210mm
Compressed air 0.6-0.8MPa
Feeding mode servo motor feeding
Fabrication Length 3≤ L≤800( one fabrication length)
Machine size/weight 2100*1070*1950/940Kg


Profile Maximum cutting ability ( Cutting precision ±0.1mm)
Circular tube (iron) Φ120
Square tube (iron) 100*100
Rectangular tube

(iron)120*80

Angle iron (iron)100*100
Round bar  (iron) Φ 50
Square rod  (iron) 50*50
Solid bar (iron) Φ 60
