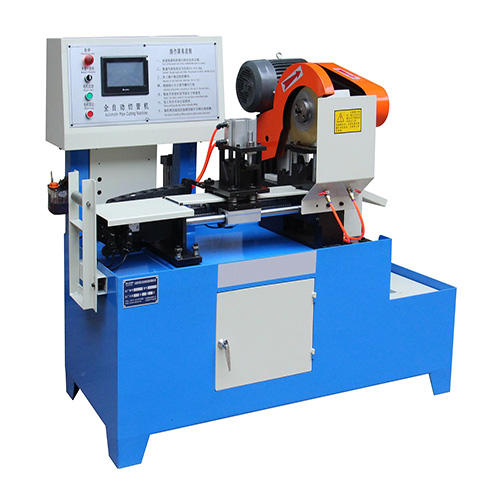

275ZH Full automatic pipe cutting machine

Feature:
1.Professional for copper, aluminum pipe, profile cutting
2.The machine uses a gas-liquid conversion cutting ,servo feeding
3.The floating chuck, accurate size , do not hurt the surface
Description

Video:




Project Technical  parameters
Host machine

4KW

Apply saw blade Φ250/275/315
Cooling-water pump 90W
Maximum opening of clamp 90mm
Compressed air 0.6-0.8MPa
Feeding mode servo motor feeding
Fabrication Length 3≤ L≤500( one fabrication length)
Machine size/weight

1600*800*1400/400Kg


Profile Maximum cutting ability ( Cutting precision ±0.1mm)
Circular tube

(Cu,Al) Φ3-Φ60mm

Round bar

(Cu,Al) Φ6-Φ40mm
