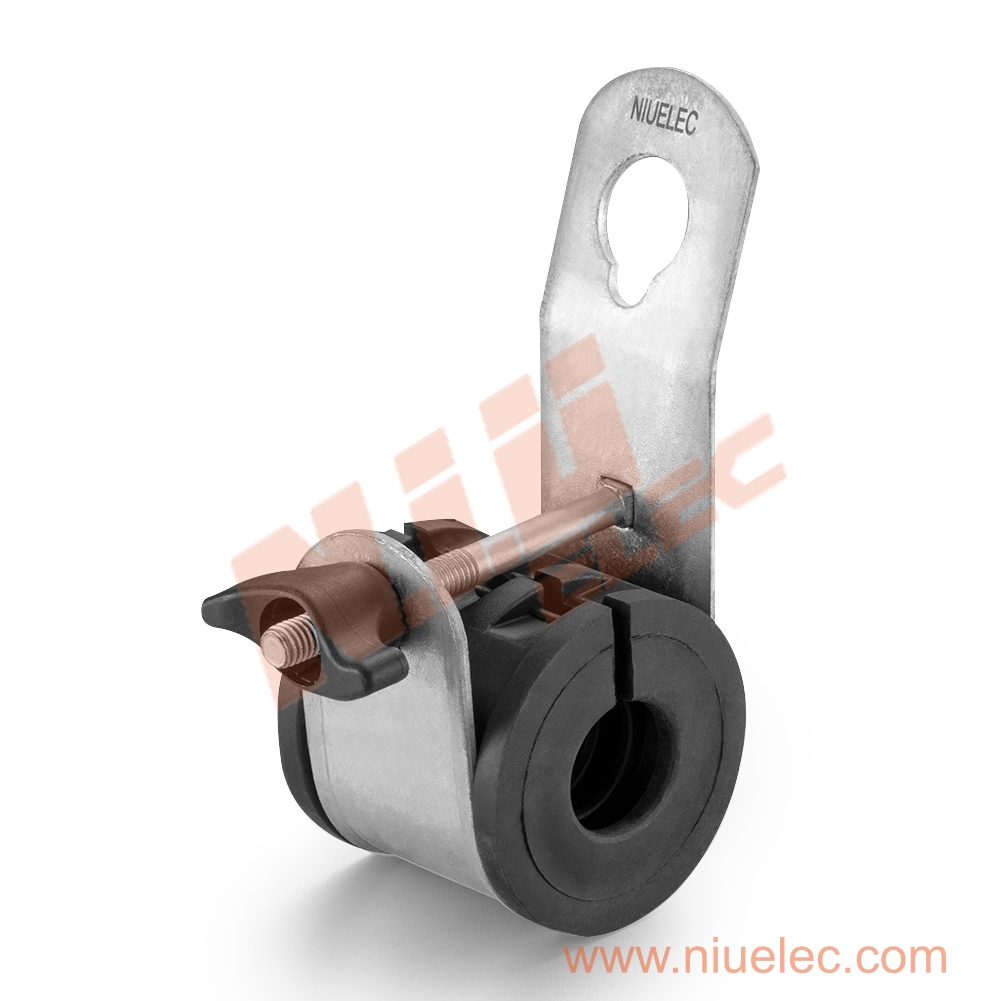

PTB-2 Brace clamps

INQUIRY
Description

Application:
The PTB-2 suspension clamp is designed for the installation and suspension of four core self-supporting LV-ABC cables to poles or walls.

Features:
1.The clamp is made of hot-dip galvanized steel and weather resistant material Equipped with shear head bolt.
2.The clamp can be easily installed without damage to the cable insulation.
3.No loose parts.
4.Standard: EN 50483-2, VDE0211



Item No. Cross section(mm²) Material Conductor(mm) Breaking load
PTB-2 4X(70-95) Nylon,Steel 40 8KN
