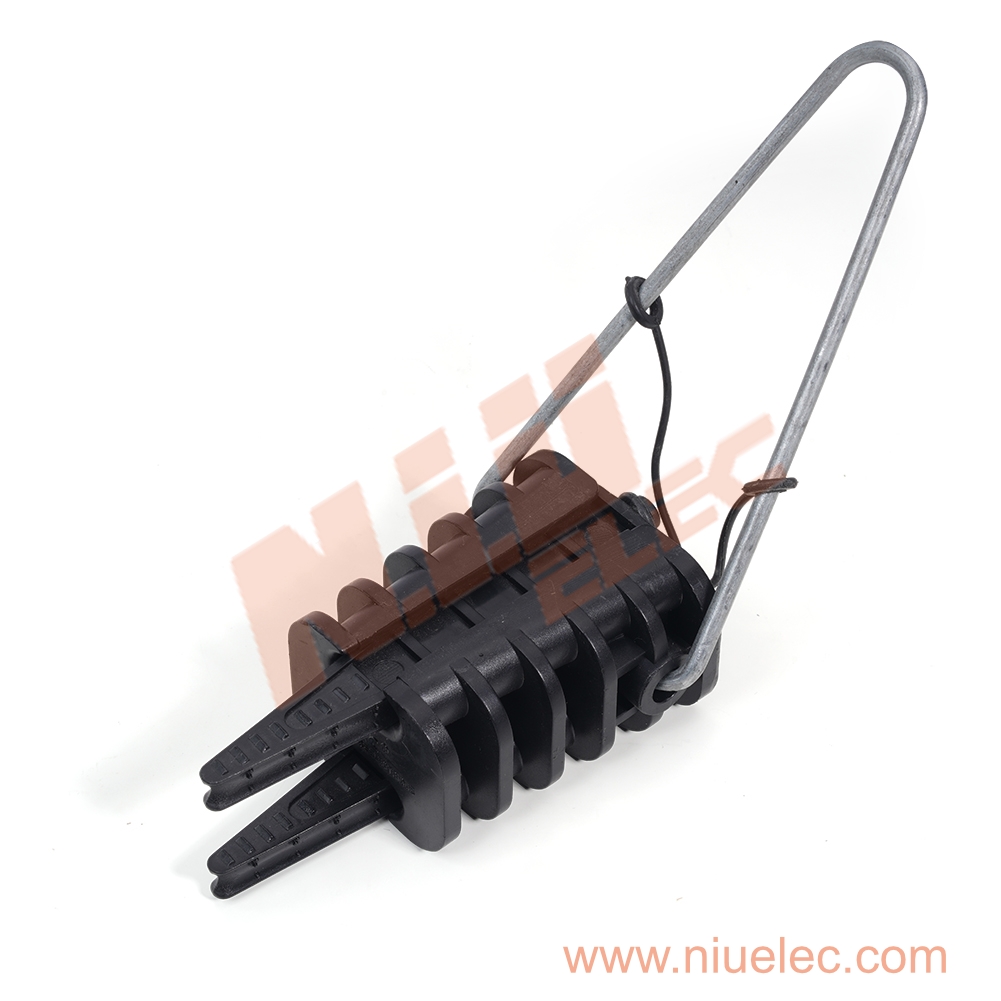

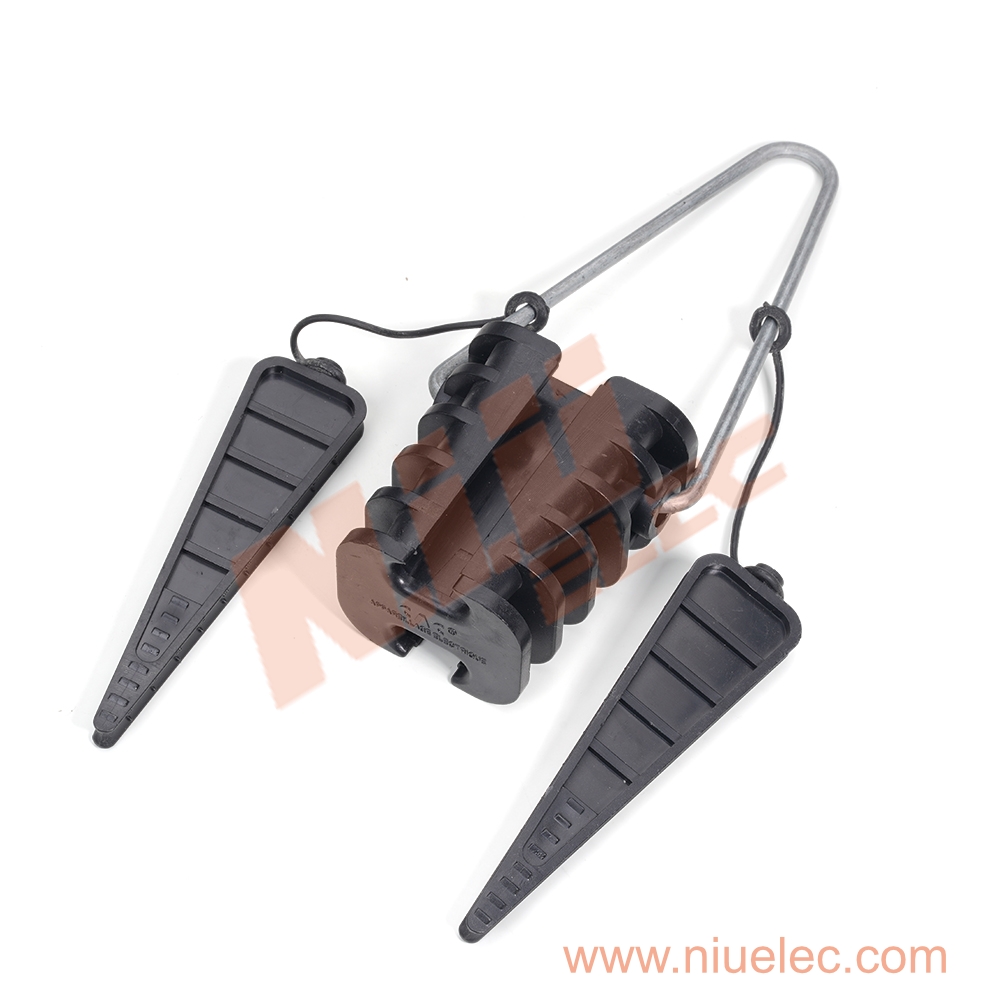

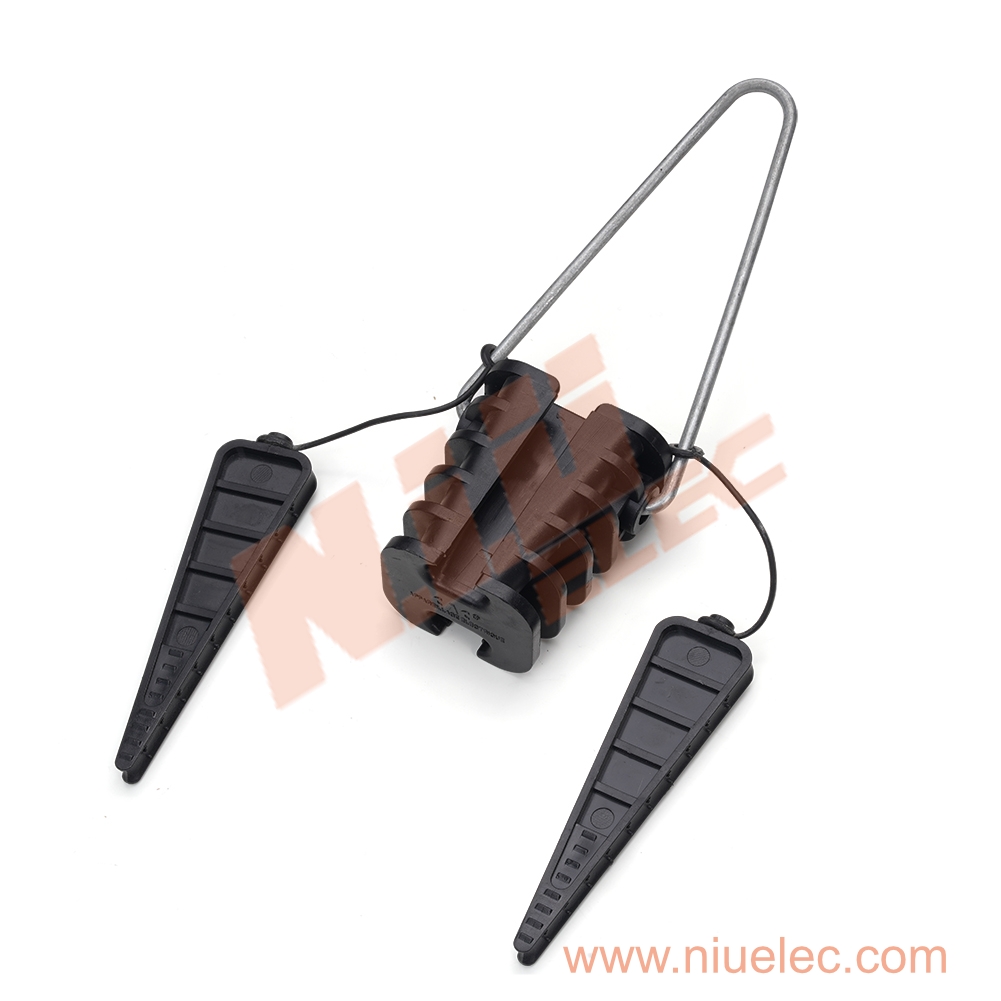

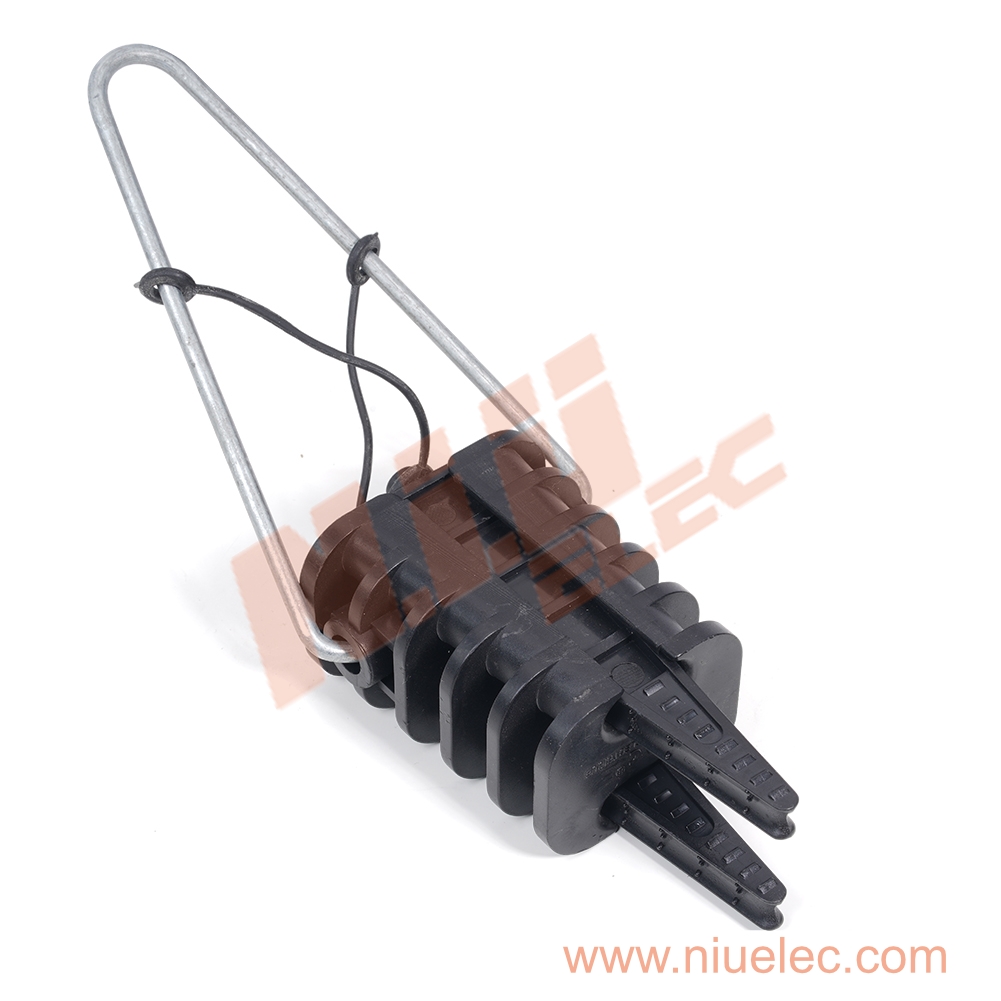

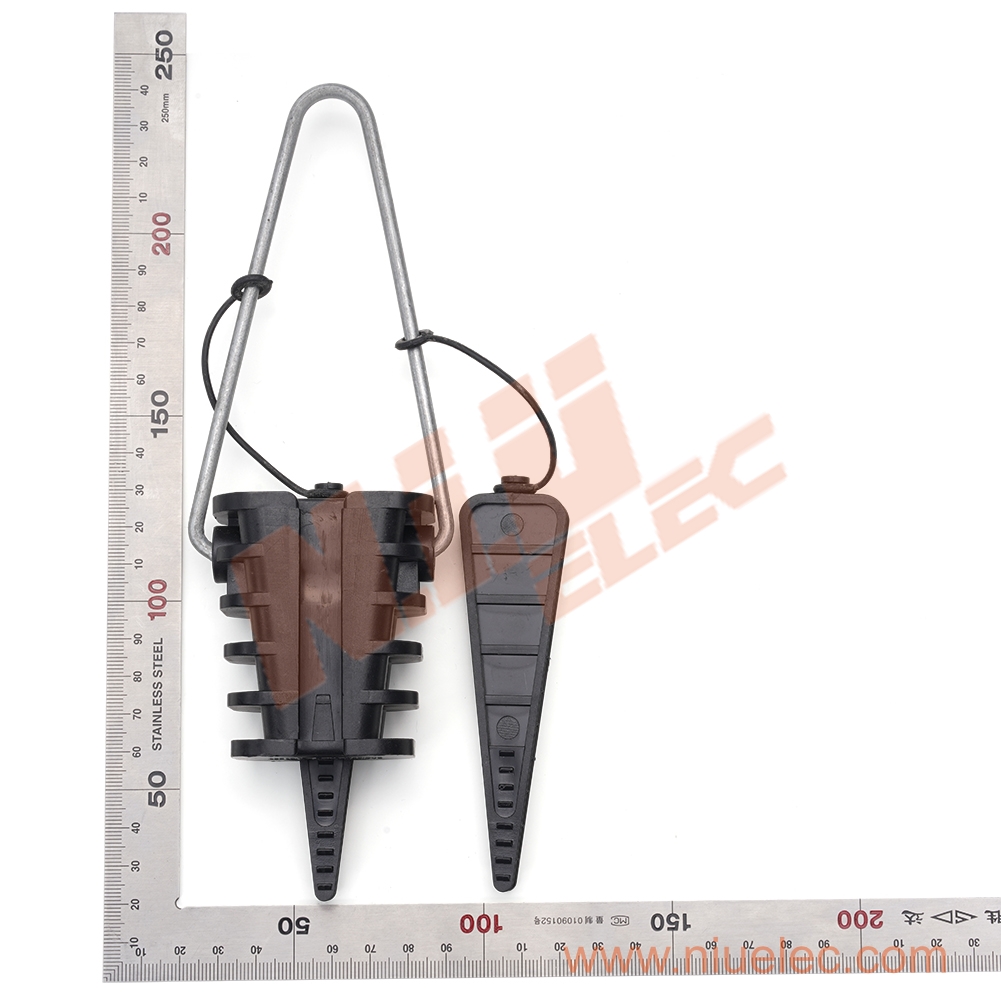

PA25C Anchor clamp

Item No.: 308
Description


Application:
PAC Anchoring Branch Clamp is used to fix the end of inside line, also suitable for insulated low-voltage ABC cable. It is also suitable for multiple conductors.


Features:
1) PAC Anchoring Branch Clamp is made of high strength PA66, nylon plus fiber glass, stainless steel. The body materials are UV-resistant.
2) Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts.
3) They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance.

4) Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails.
5) There is flexible stainless steel wire with the clamp.



Item No. Cross section (mm2) Material Conductor(mm) Breaking load
PAC-25 4X(16-25) Nylon,steel 4-8 2KN
