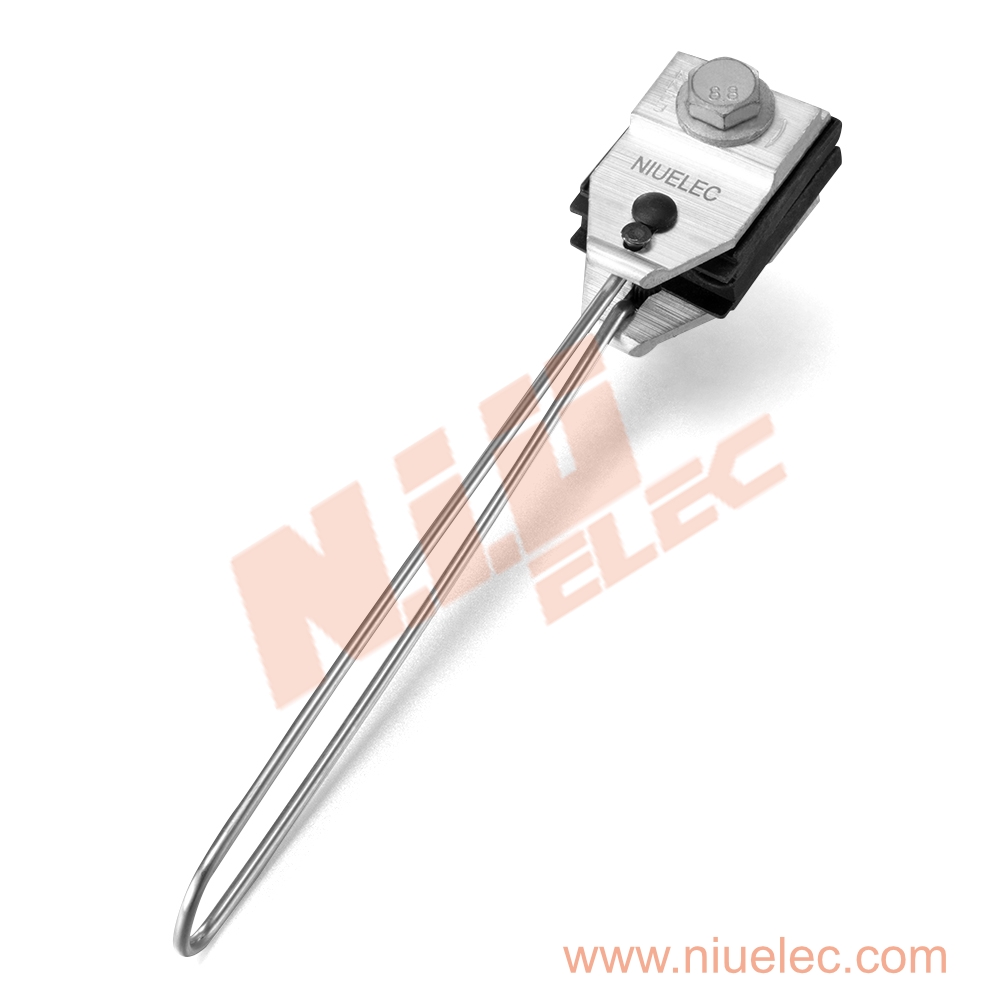

PA2-35 Dead end clamp

Description

Application:
The PA dead end clamp is designed to anchor insulated service lines with 2conductors.


Features:
1) The body is made of corrosion-resisting aluminum alloy, automatic adjustment wedge is made of special polymer material, no change when exposure to ultraviolet light.
2) Tool free installation with wedges sliding inside the body, easy to open bail permits fixing to brackets and pigtails.
3) PA Anchoring Branch Clamp is made of weather resistant polymer, reinforced thermo-plastic UV resistant cover.
4) There is flexible stainless steel wire with the clamp.




Item No. Cross section (mm2) Material Conductor(mm) Breaking load
PA2/35 2X(16-35) Nylon,Steel 3-6 6.5KN
PA4-35 4X(16-35) Nylon,Steel 3-6 8KN
