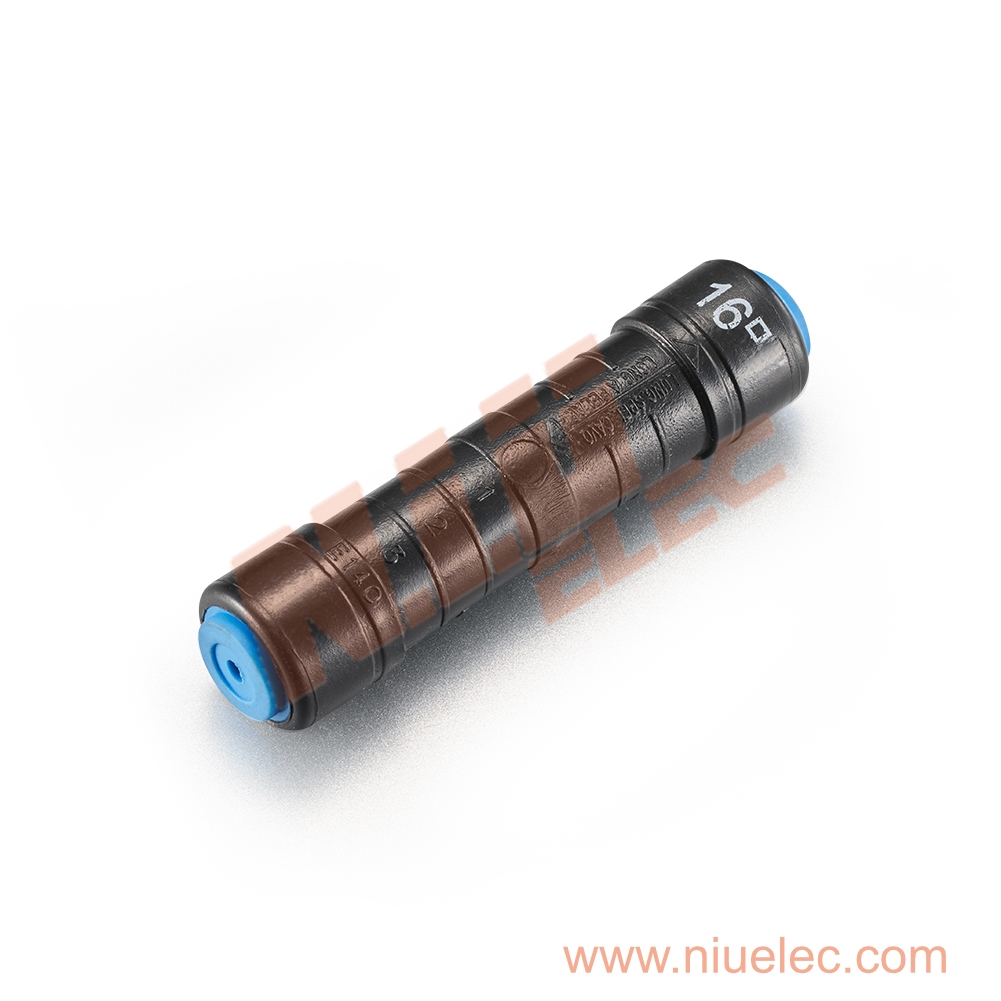

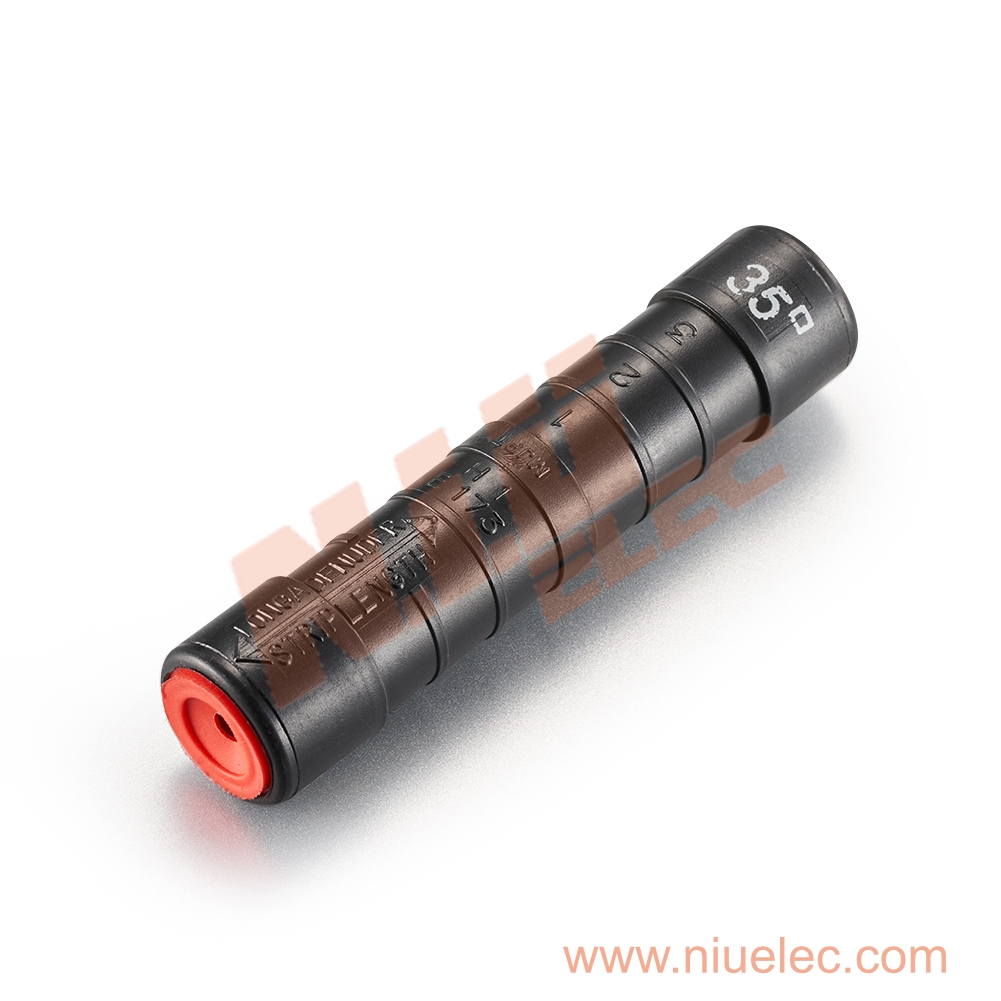

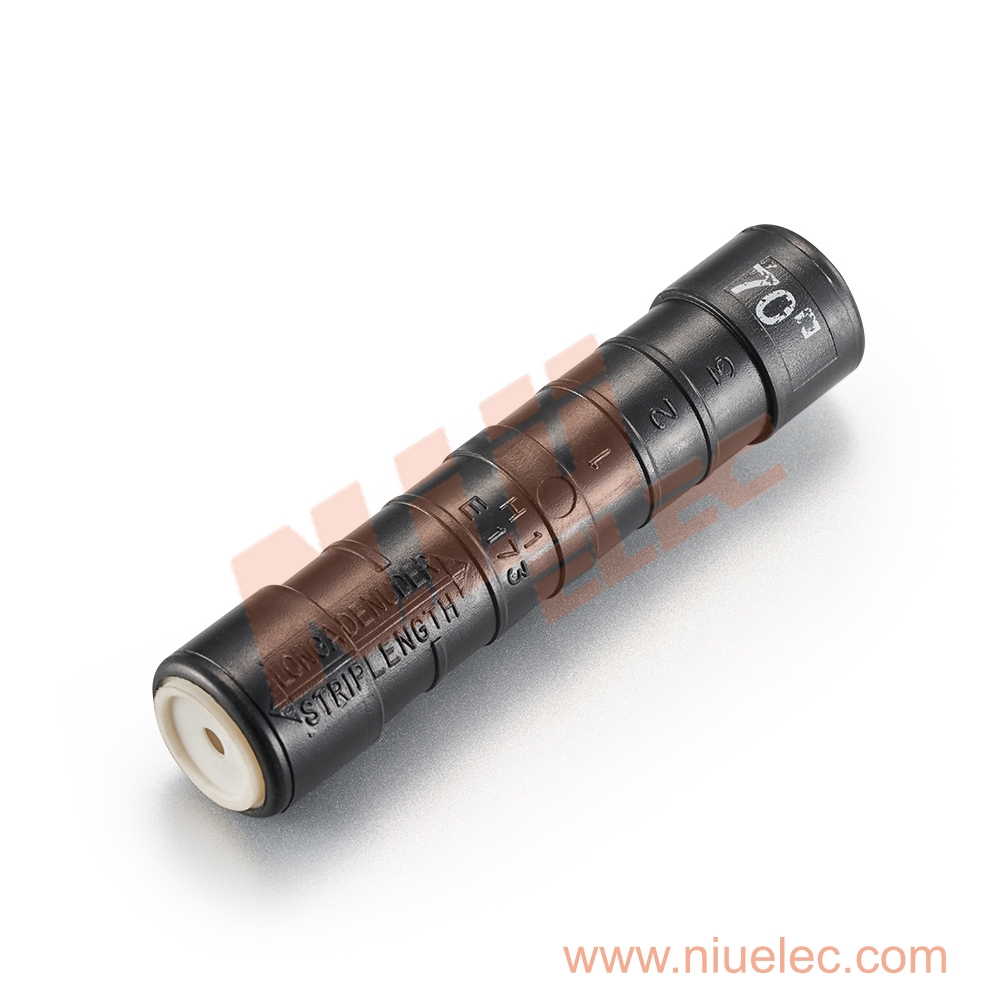

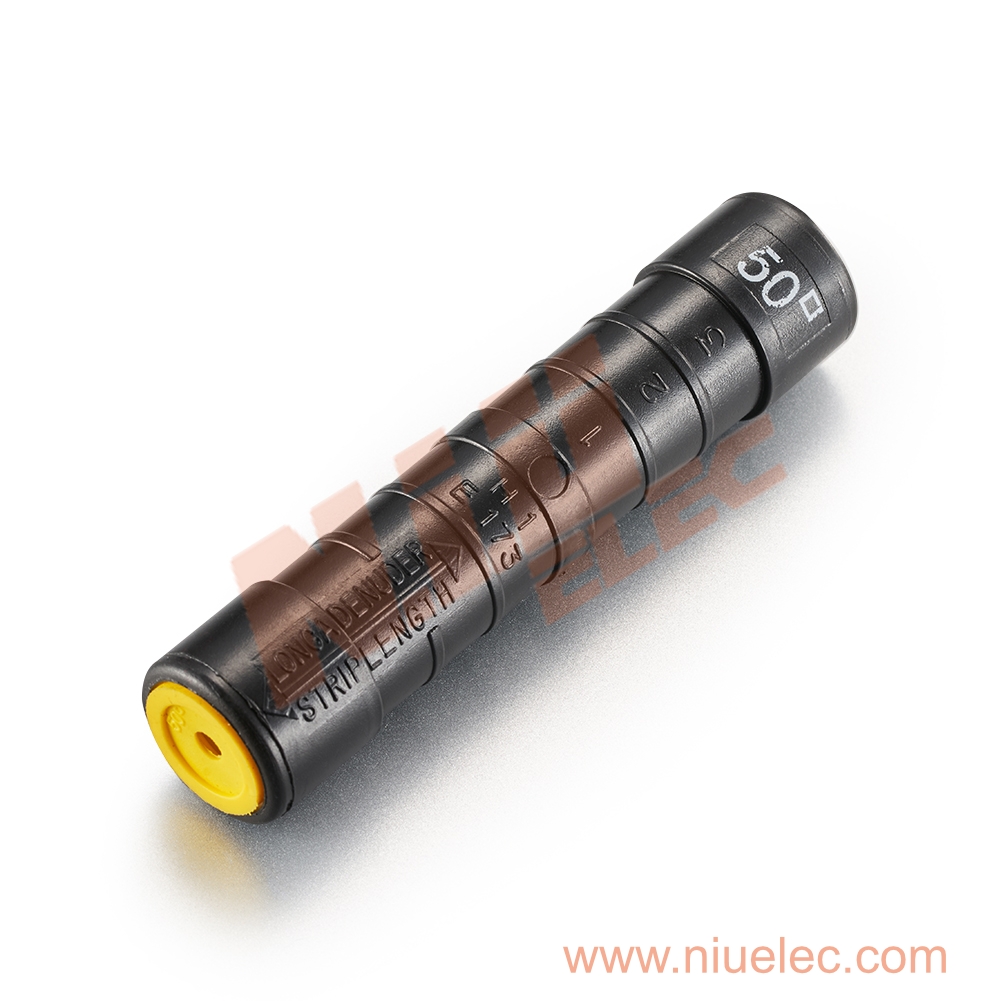

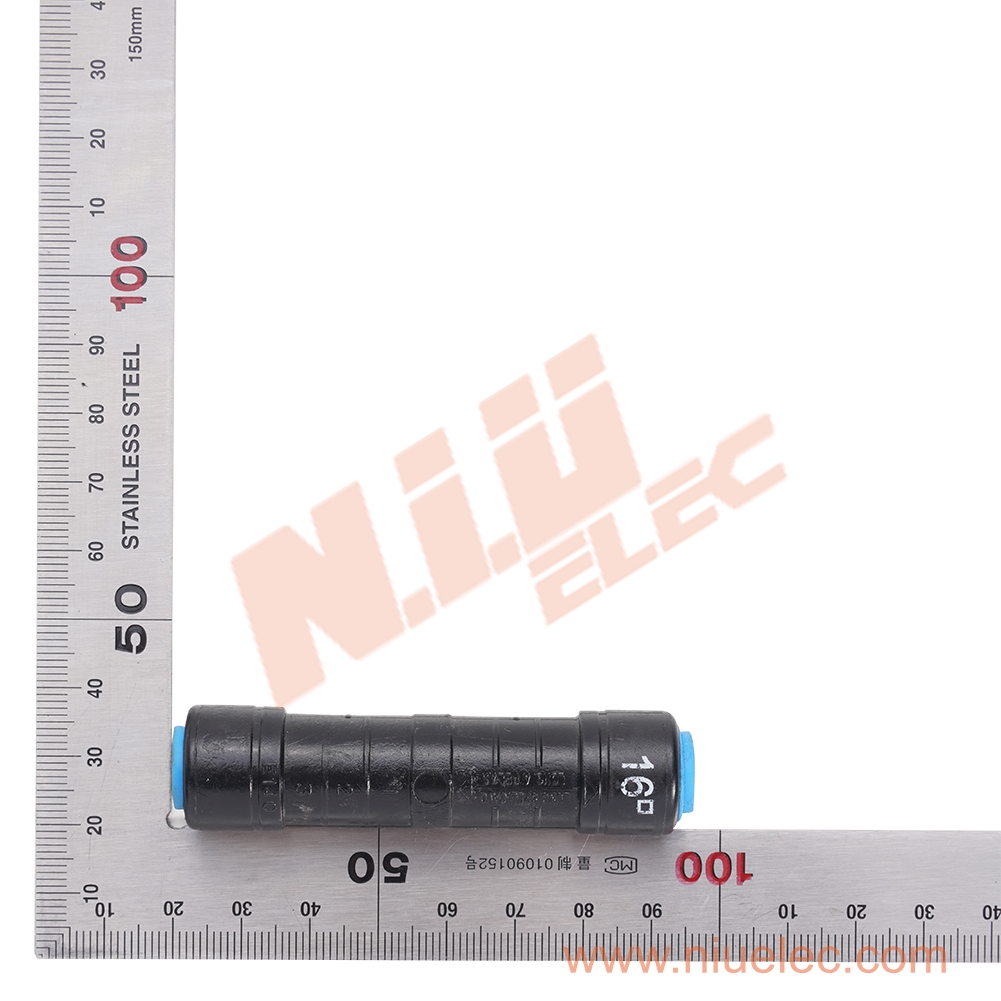

NULG Pre-insulated connector

Pre-insulated aluminum sleeves for phases, and neutral covered inside with contact grease. Insulation of the cable with a sheath resistant to compression and with water-tightness joints (type test for insulation: 6 kV in water for one minute).
Description

Advantages:

1).End colored joint to identify the section easily.

2).Tightness of the connection allows to connect Alu / Alu , Alu / Cu and Cu / Cu.

Instructions:



 NULG Pre-insulated Junction Sleeve is suitable for connecting the insulated cable (include ABC cable) in aerial distribution network.

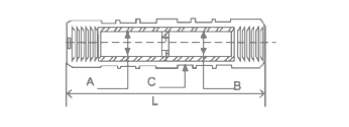

Type Cable Size(mm²) Plastic Sleeve Diameter(mm) Length
A B L

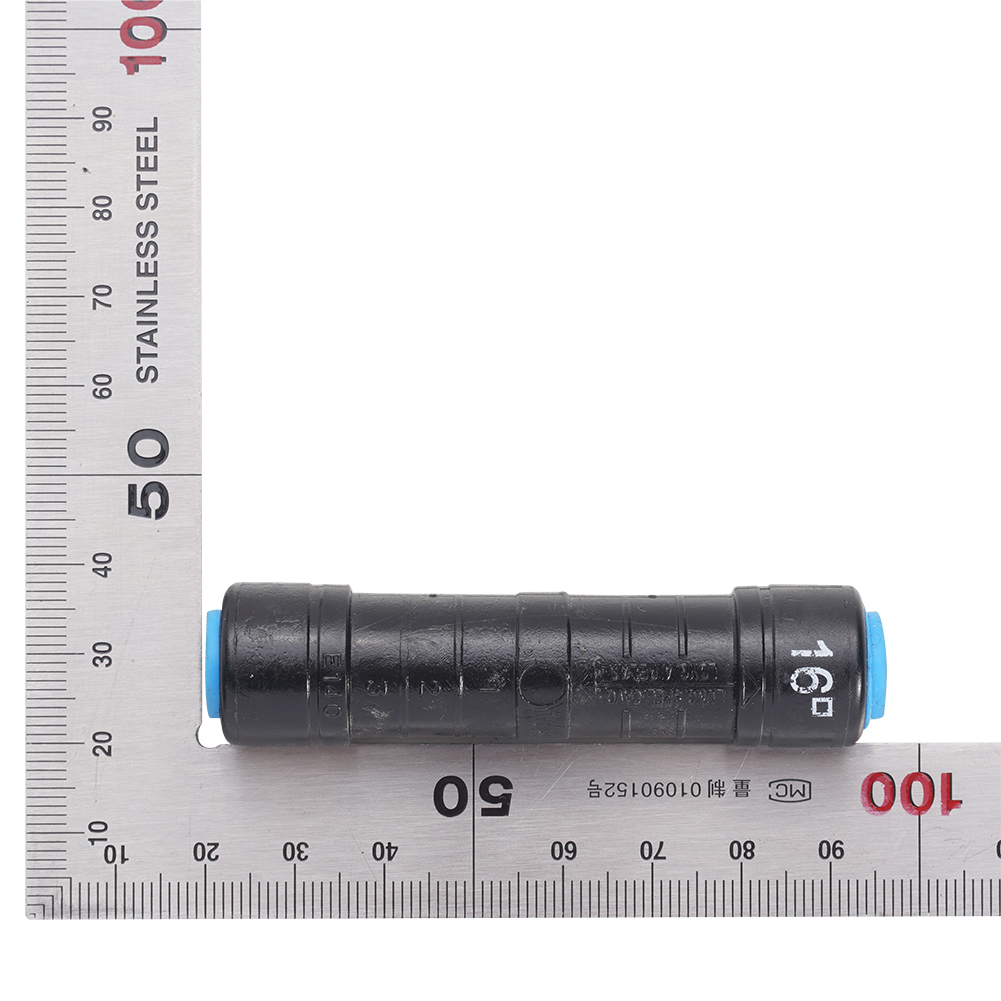

NULG16/16 16 16 16 70.5

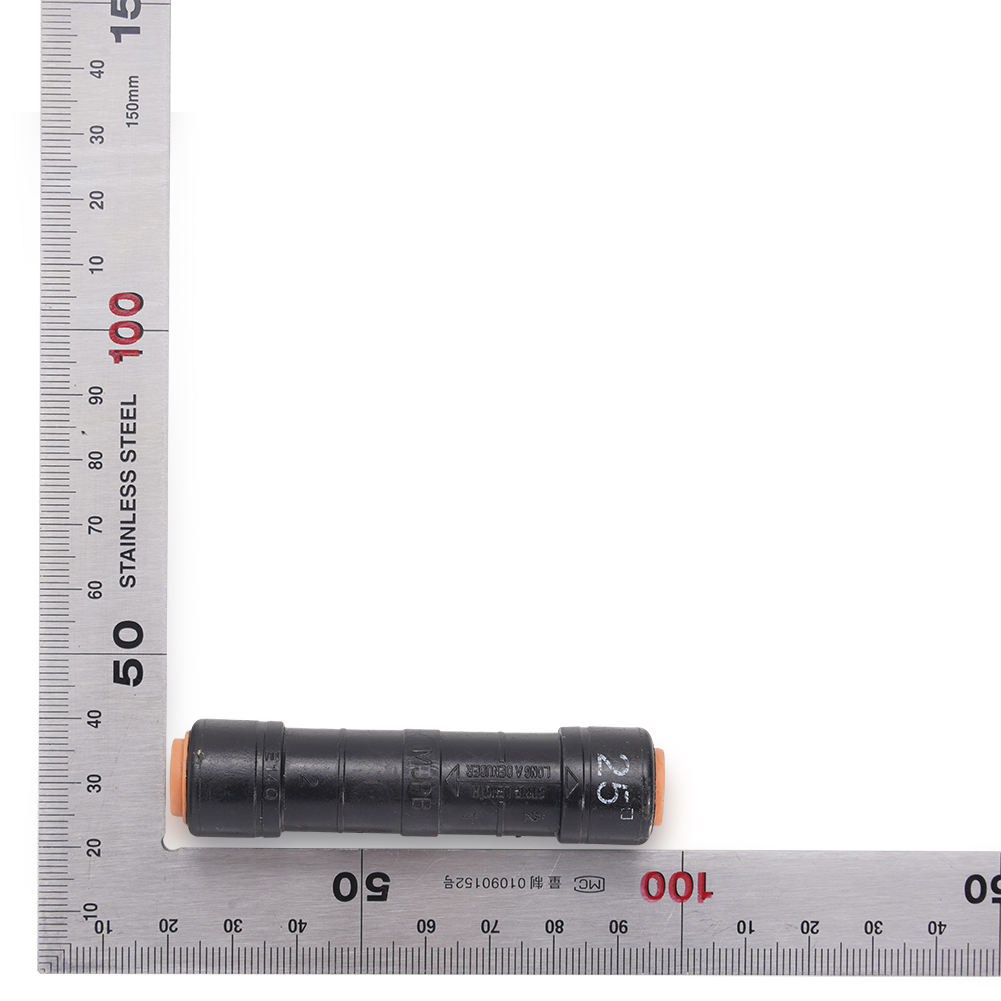

NULG25/25 25 25 16 70.5

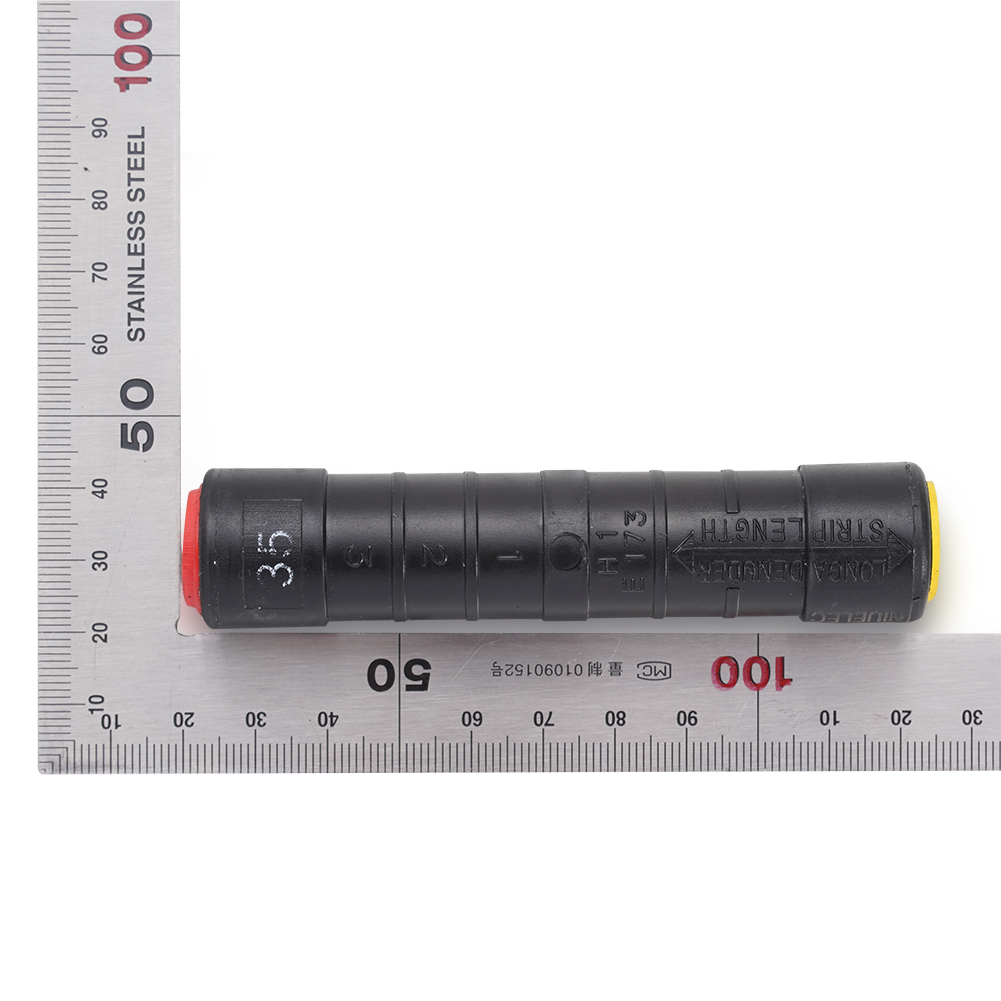

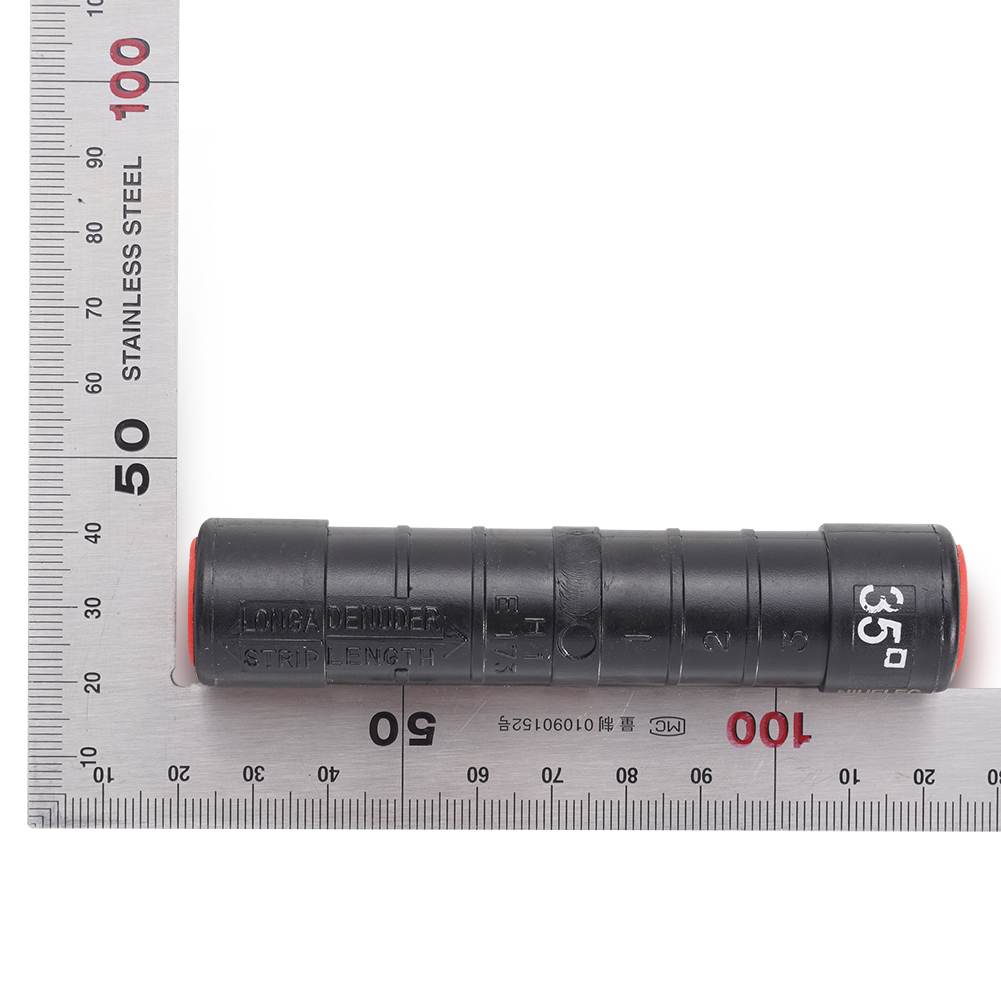

NULG35/35 35 35 20 98.5

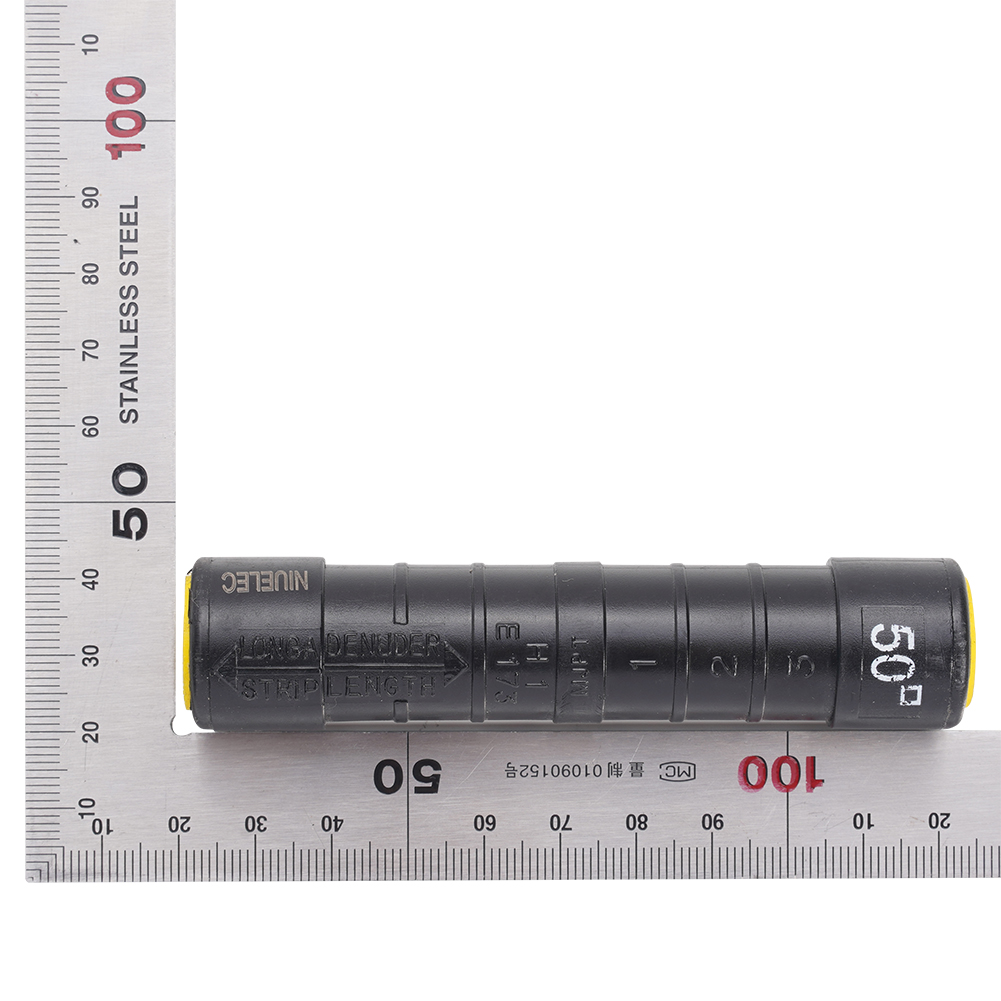

NULG50/50 50 50 20 98.5
NULG70/70 70 70 20 98.5
NULG95/95 95 95 20 98.5
