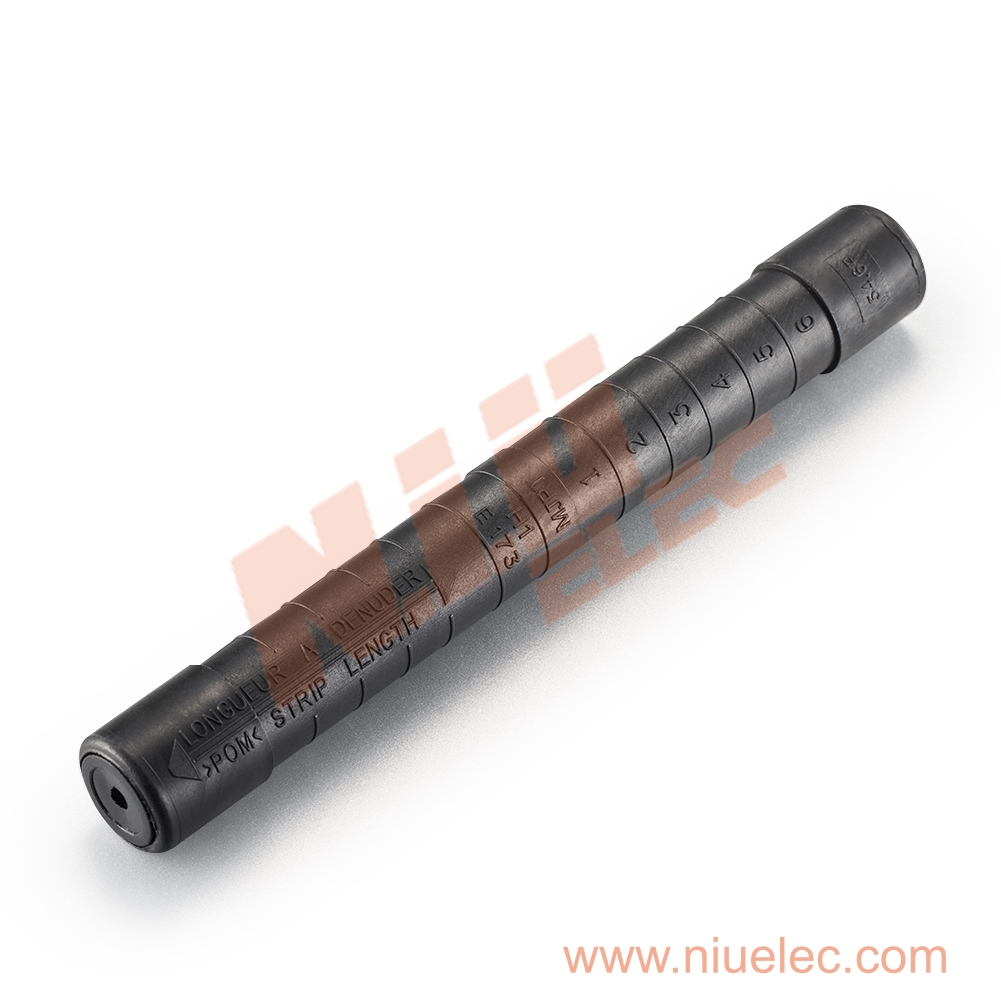

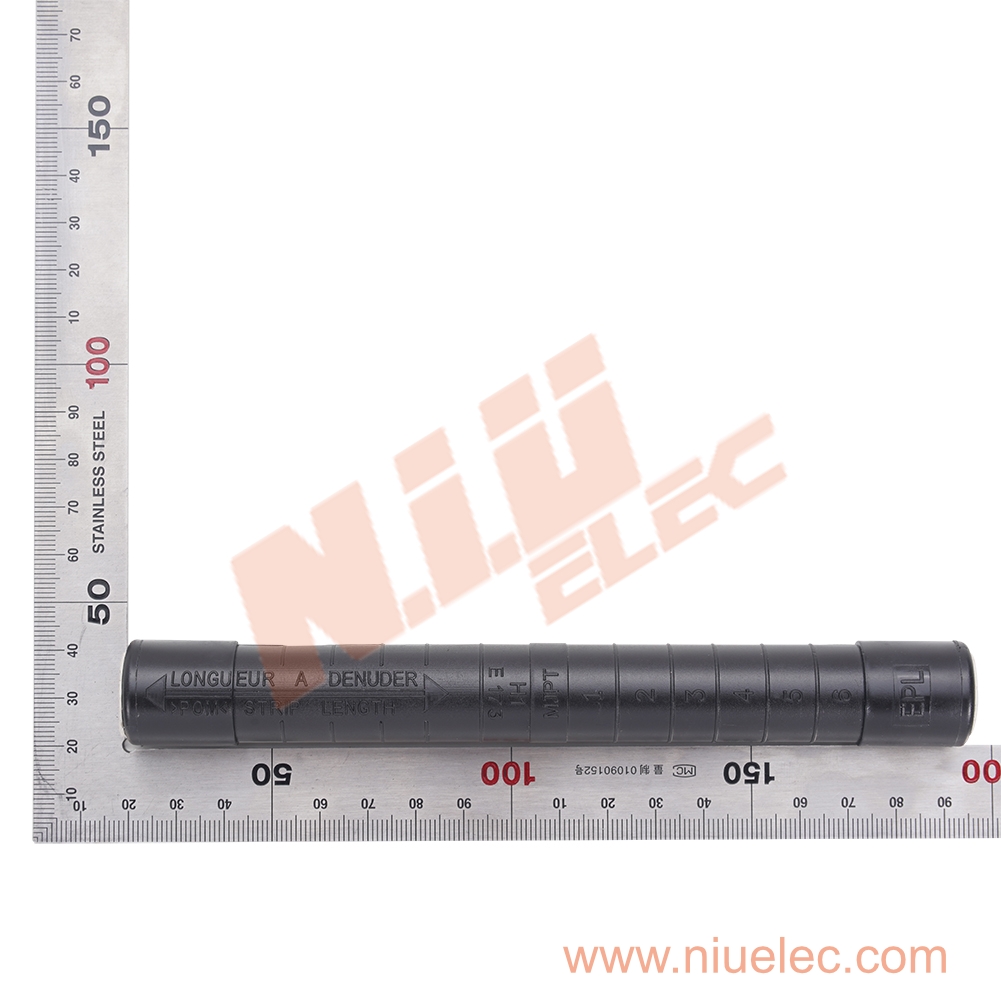

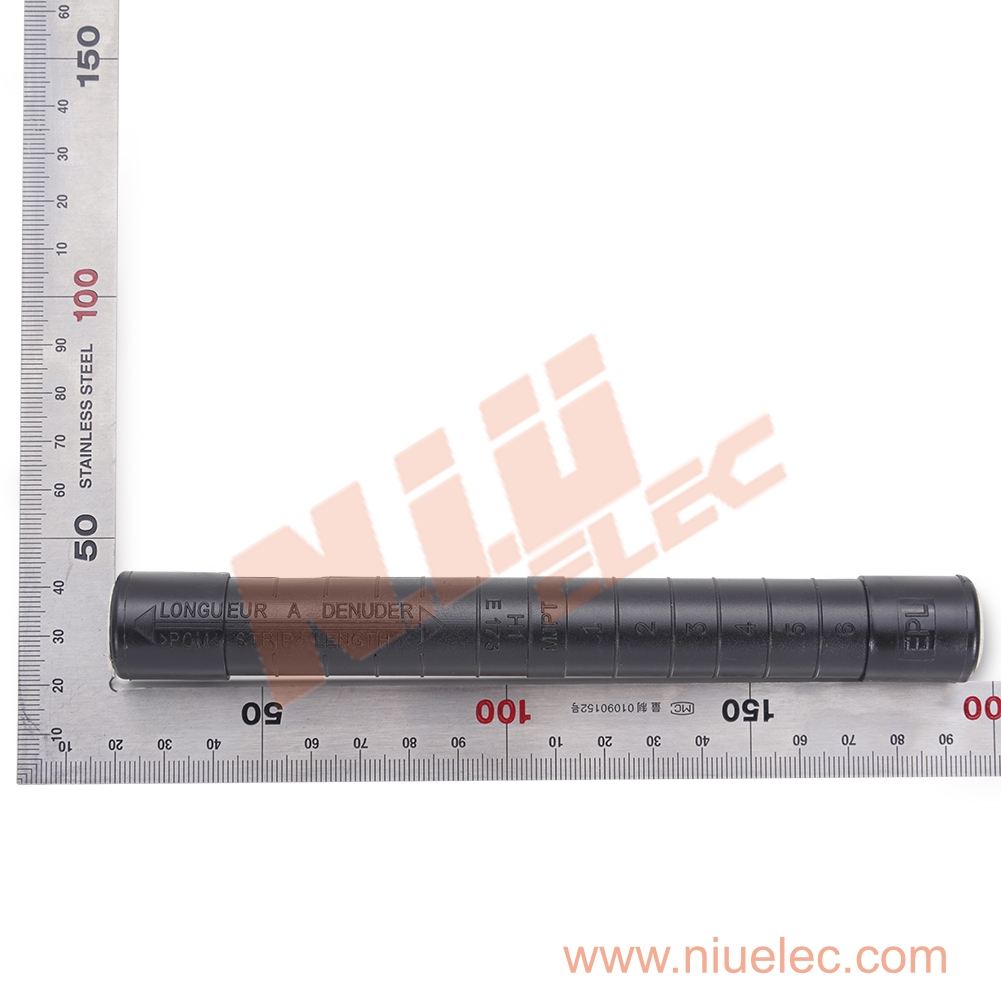

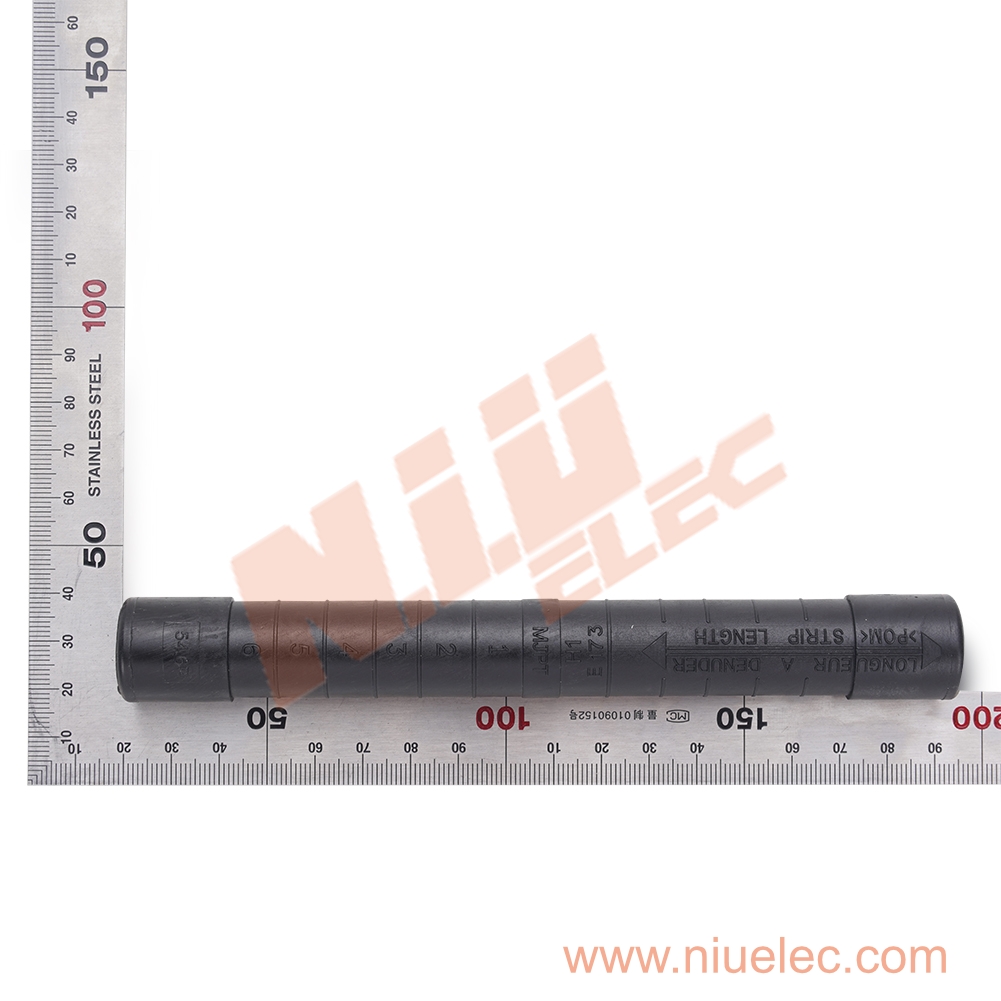

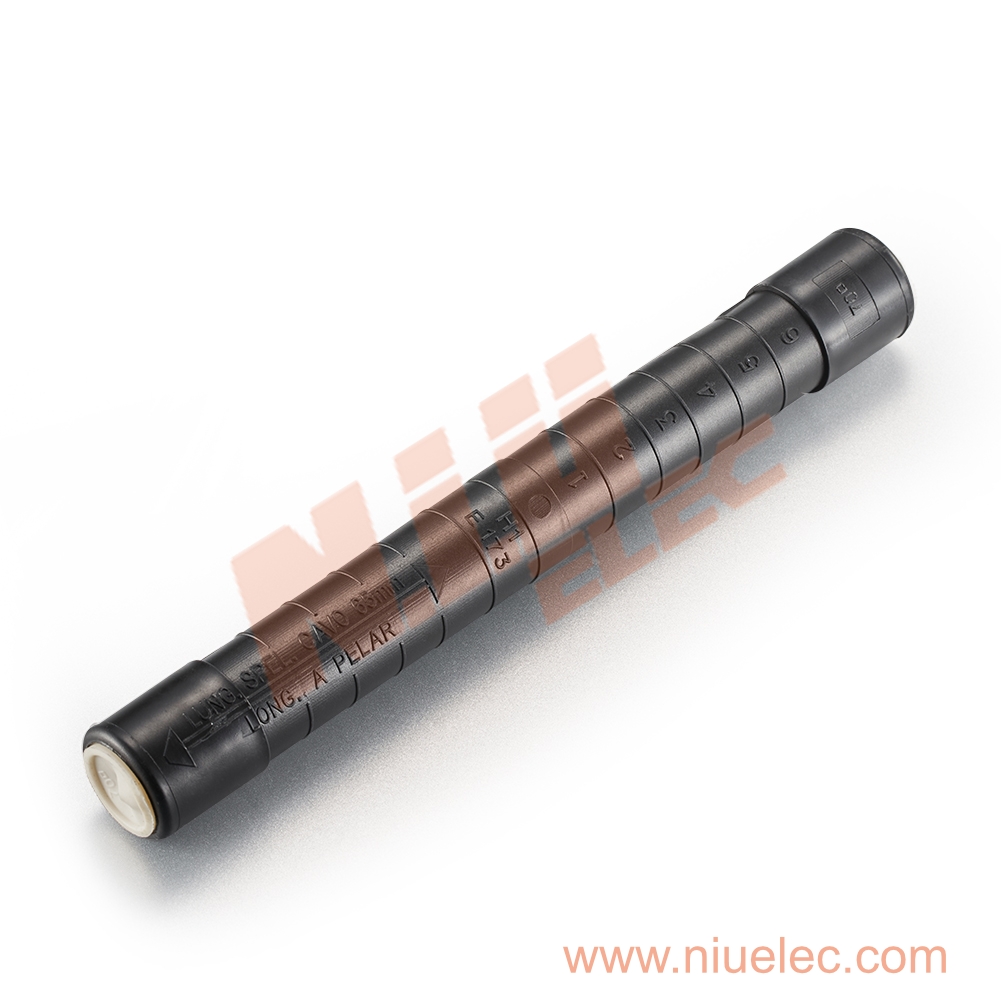

M MJPTN Pre-insulated connector

Description
Application:
The MJPTN pre-insulated connectors are designed for LV-ABC systems with a neutral messenger. The MJPTN is used on the neutral conductor.

Features:
1) Stripping of cable insulation is required before insertion.
2) Cross-section of conductor can be easily identified by the color code of rings.
3) Elastomeric ring and pre-filled grease enable super waterproof performance.
4) Pre-filled with jointing compound.
5) Watertightness test carried out at 6kV for 1 minute under water.
6) Insulation tube is made of weather and UV resistant polymer.
7) Standard: EN 50483-4 , NFC 33-021

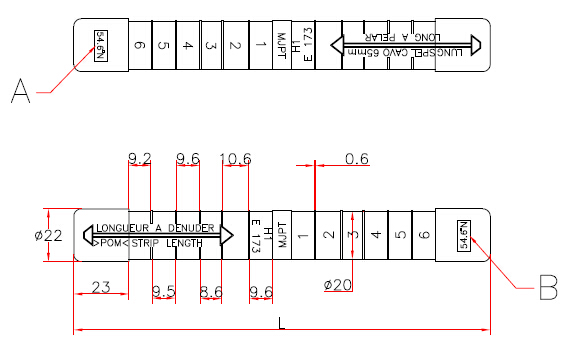

Item No.
Cable Size(mm²) Length

L
 A B
MJPTN 54.6/54.6 54.6 54.6 174
MJPTN 54.6/70 54.6 70 174
MJPTN 70/70 70 70 174
MJPTN 95/95D 95 95 174
