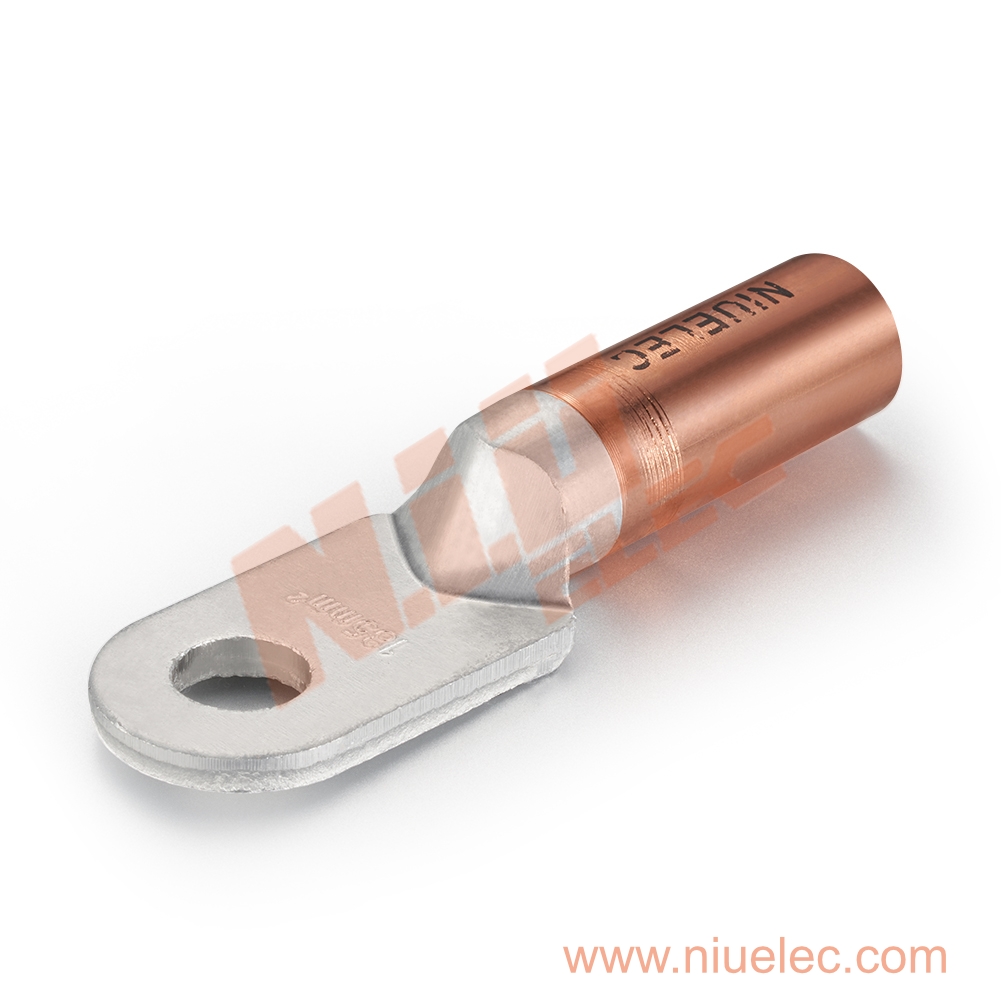

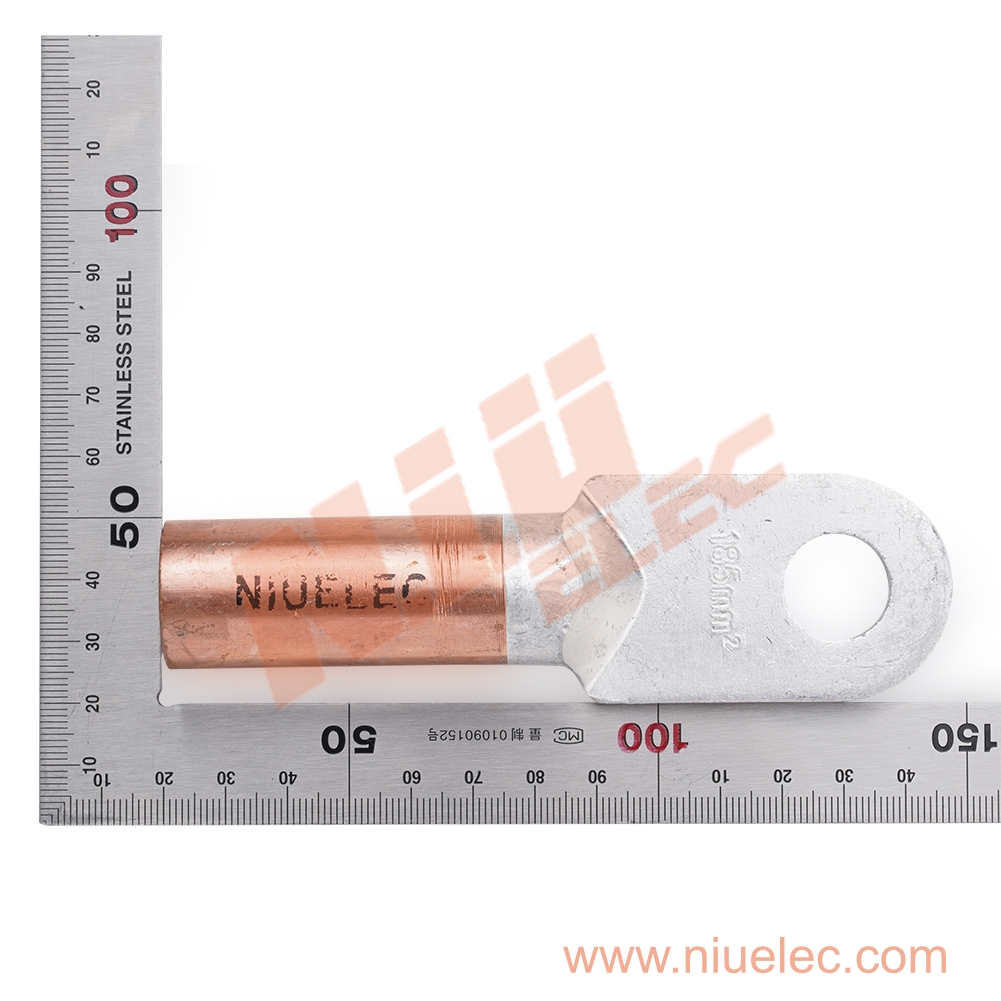

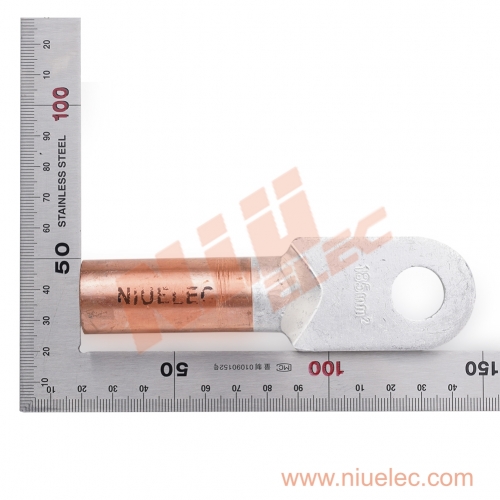

DTL-6 Bimetal Friction Welding Lug

Description
Application:
DTL-6 Reverse Bimetal Crimp Lug is suitable for aluminum to copper terminations.

Features:
1. Prefilled with jointing compound.
2. Friction welded.
3. Material: CU≥99.9%, AL≥99.5%



Item No. φ±0.3 D±0.2 d±0.2 L±2
DTL-6-10 8.5 9 5.2 66
DTL-6-16 8.5 10 6.1 70
DTL-6-25 8.5 11 7.1 76
DTL-6-35 10.5 12 8.5 83
DTL-6-50 10.5 14 9.8 90
DTL-6-70 12.5 16 11.5 102
DTL-6-95 12.5 18 13.5 112
DTL-6-120 14.5 20 15.0 120
DTL-6-150 14.5 22 17.0 126
DTL-6-185 16.5 25 18.6 134
DTL-6-240 16.5 27 21.5 140
DTL-6-300 21.0 31 24.0 160
DTL-6-400 21.0 34 27.0 178
DTL-6-500 21.0 38 30.0 200
