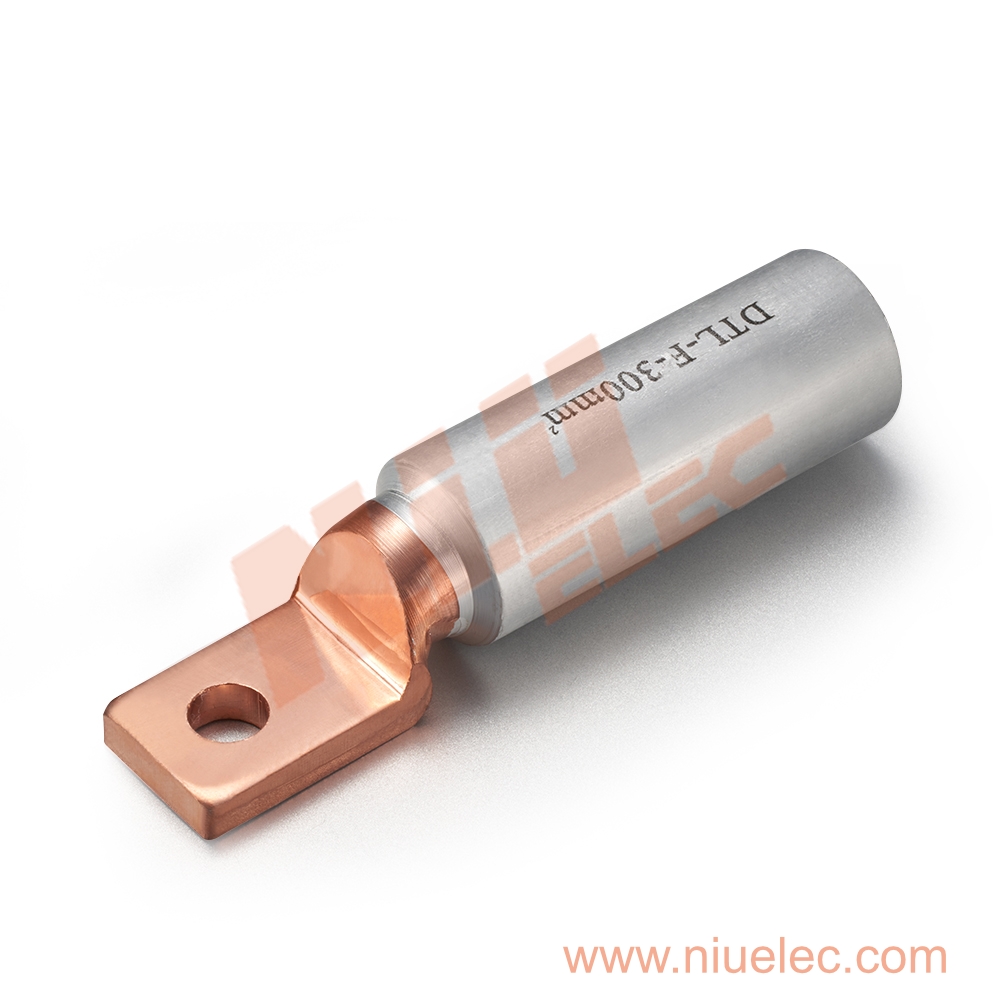

DTL-2F Bimetal Friction Welding Lug

Description
Features:
1.The solid palm eliminates the ingress of moisture.
2.Prefilled with jointing compound.
3.Friction welded.
4.Material: Cu≥99.9% ,Al≥99.5 %



Item No. φ±0.3 D±0.2 d±0.2 L±2 L1±2 W±0.2 S±0.2
DTL-2F-10 8.5 16 4.5 87 42 14.0 4.2
DTL-2F-16 8.5 16 5.5 87 42 14.0 4.2
DTL-2F-25 8.5 16 7.0 87 42 14.0 4.2
DTL-2F-35 8.5 16 8.5 87 42 14.0 4.2
DTL-2F-50 10.5 20 9.5 100 50 17.0 5.2
DTL-2F-70 10.5 20 11.5 100 50 17.0 5.2
DTL-2F-95 10.5 20 13.0 100 50 17.0 5.2
DTL-2F-120 13.0 25 15.0 120 60 21.0 6.2
DTL-2F-150 13.0 25 16.5 120 60 21.0 6.2
DTL-2F-185 13.0 32 18.0 125 60 25.0 7.2
DTL-2F-240 13.0 32 19.5 125 60 25.0 7.2
DTL-2F-300 13.0 34 23.5 145 65 30.0 8.0
DTL-2F-400 13.0 40 26.0 150 70 32.0 8.0
DTL-2F-500 13.0 40 29.0 150 70 32.0 8.0
