Application:

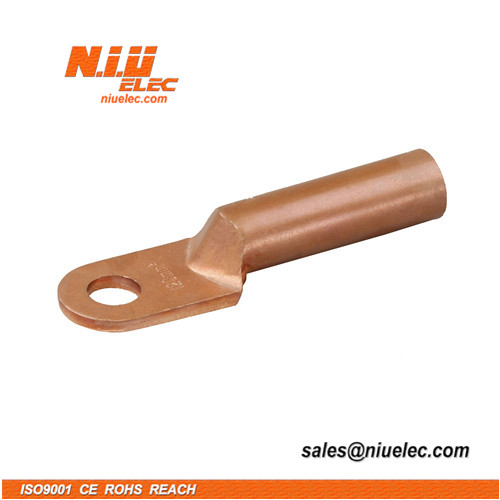

DT Copper Lug is suitable for copper conductor, made of Seamless copper tube and finished electro tinned.
Features:
1. DT Copper Lugs come in sizes to fit cables ranging from 16 mm2 up to 300mm2. Eyelet sizes available are 6mm. 8mm.10mm.12mm.16mm and 20mm or according to customers requirements.
2. It is seamless copper tube guarantee good quality.
3. The cable area of DT copper lug is identified clearly on the lug.
4. Material: CU≥99.9%
| Item No. | Φ±0.5 | D±0.3 | d±0.3 | L±2 | L1±2 | W±1 | S±0.5 | Weight(g) |
| DT-16 | Φ8.5 | 10.1 | 6.6 | 70 | - | 16.2 | 2 | 29 |
| DT-25 | Φ8.5 | 11.1 | 7.4 | 71 | 32 | 18.2 | 2.5 | 33 |
| DT-35 | Φ10.5 | 12 | 8.4 | 79 | 37 | 20.2 | 3 | 43 |
| DT-50 | Φ10.5 | 14 | 9.8 | 84 | 40 | 23.1 | 3.7 | 63 |
| DT-70 | Φ12.5 | 16 | 11.6 | 93 | 42 | 26.2 | 4.5 | 90 |
| DT-95 | Φ12.5 | 18.2 | 13.6 | 102 | 44.5 | 28.3 | 4.5 | 120 |
| DT-120 | Φ14.5 | 20 | 15.3 | 109 | 48 | 30.2 | 5.5 | 156 |
| DT-150 |
Φ14.5 |
22.1 | 16.6 | 116 | 52 | 32.6 | 6 | 204 |
| DT-185 | Φ16.5 | 24.1 | 18.8 |
125 |
56 | 36.6 | 6.5 | 252 |
| DT-240 | Φ16.5 | 27 | 21.1 | 136 | 60 | 40.1 | 6.8 | 346 |
| DT-300 | Φ21 | 31.2 | 23.4 | 150 | 67 | 50 | 7.8 | 502 |
