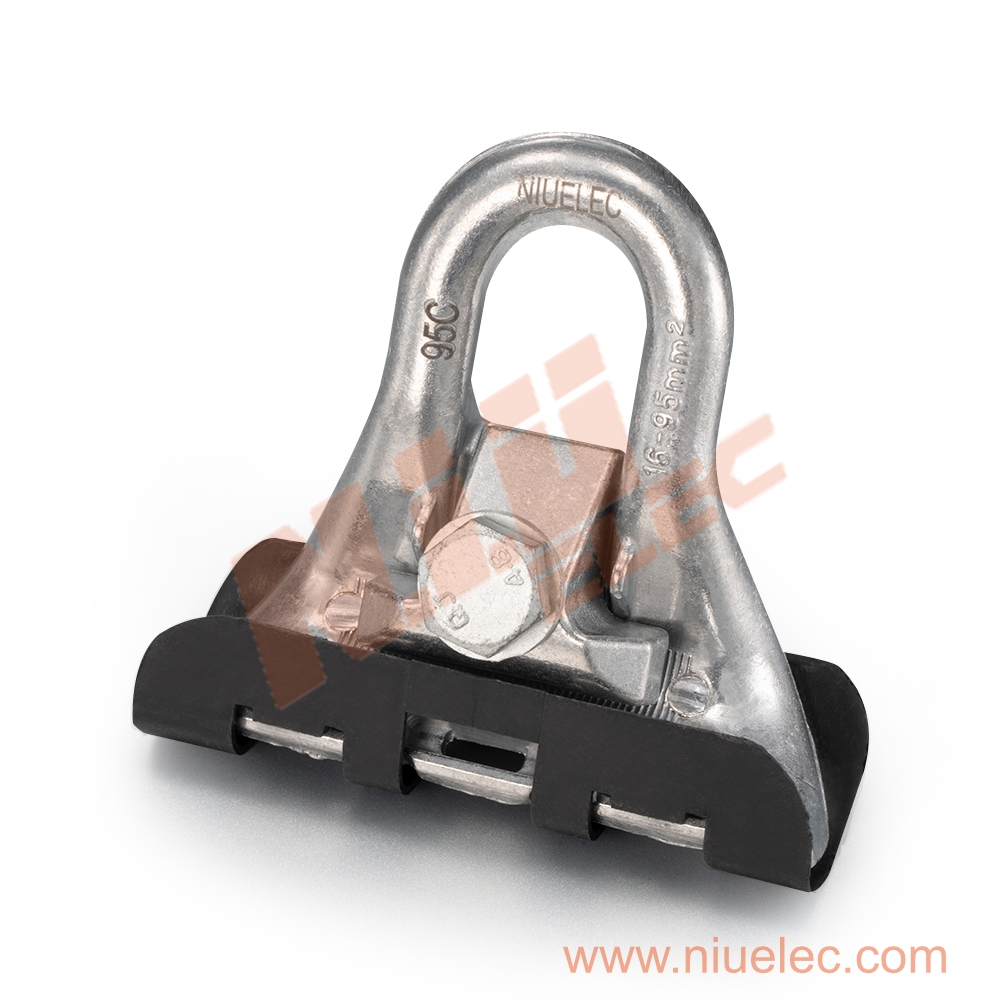

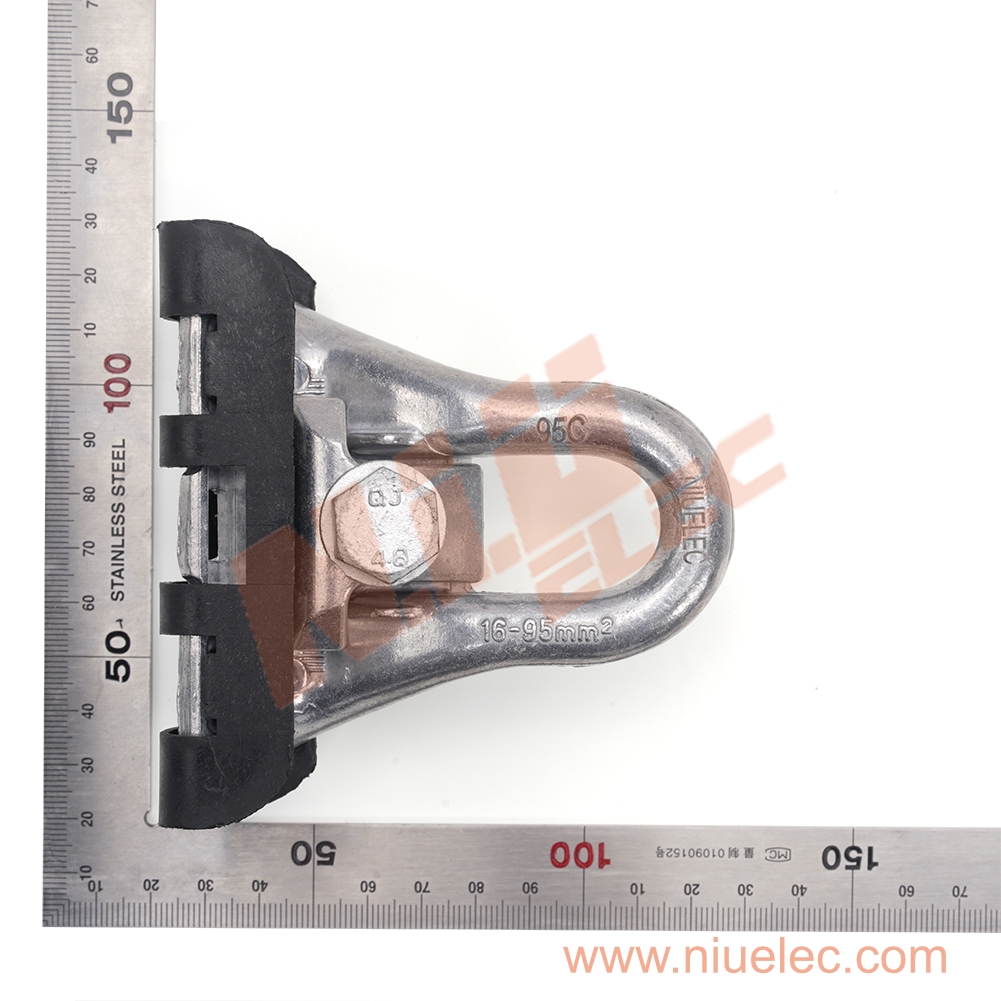

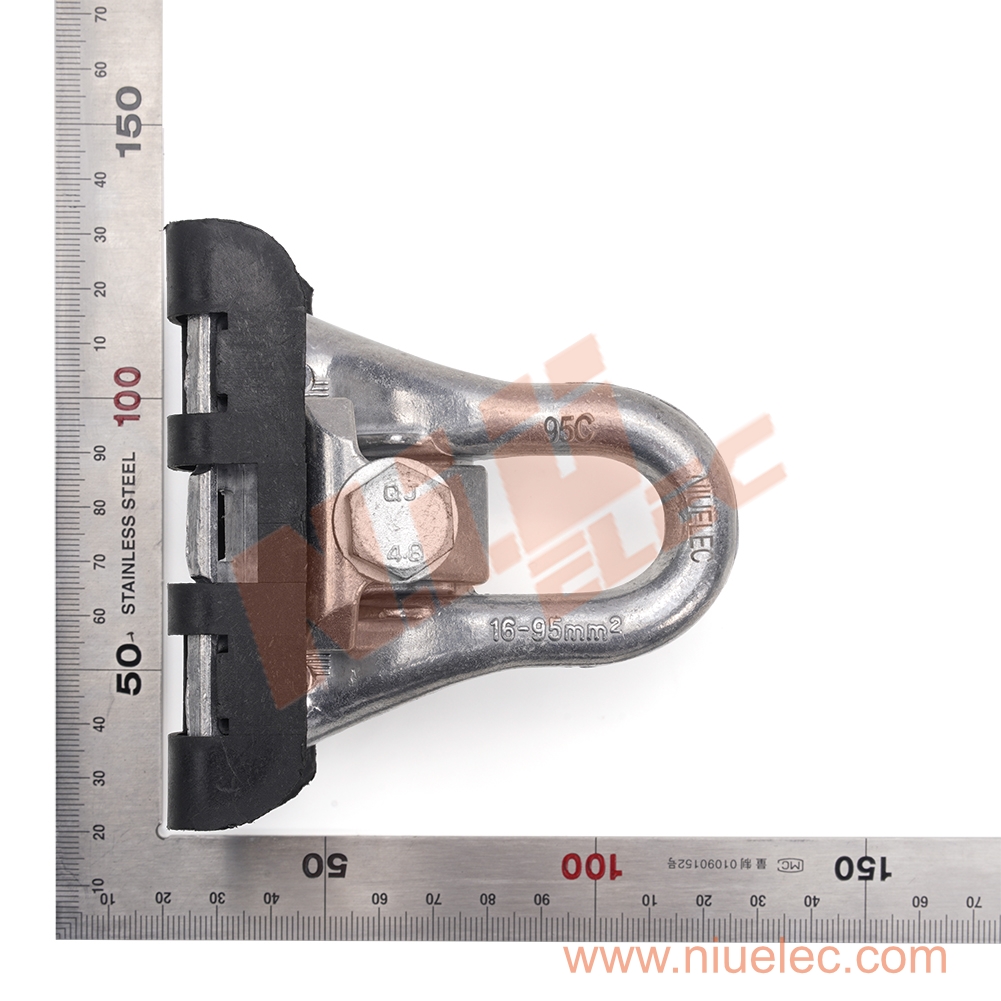

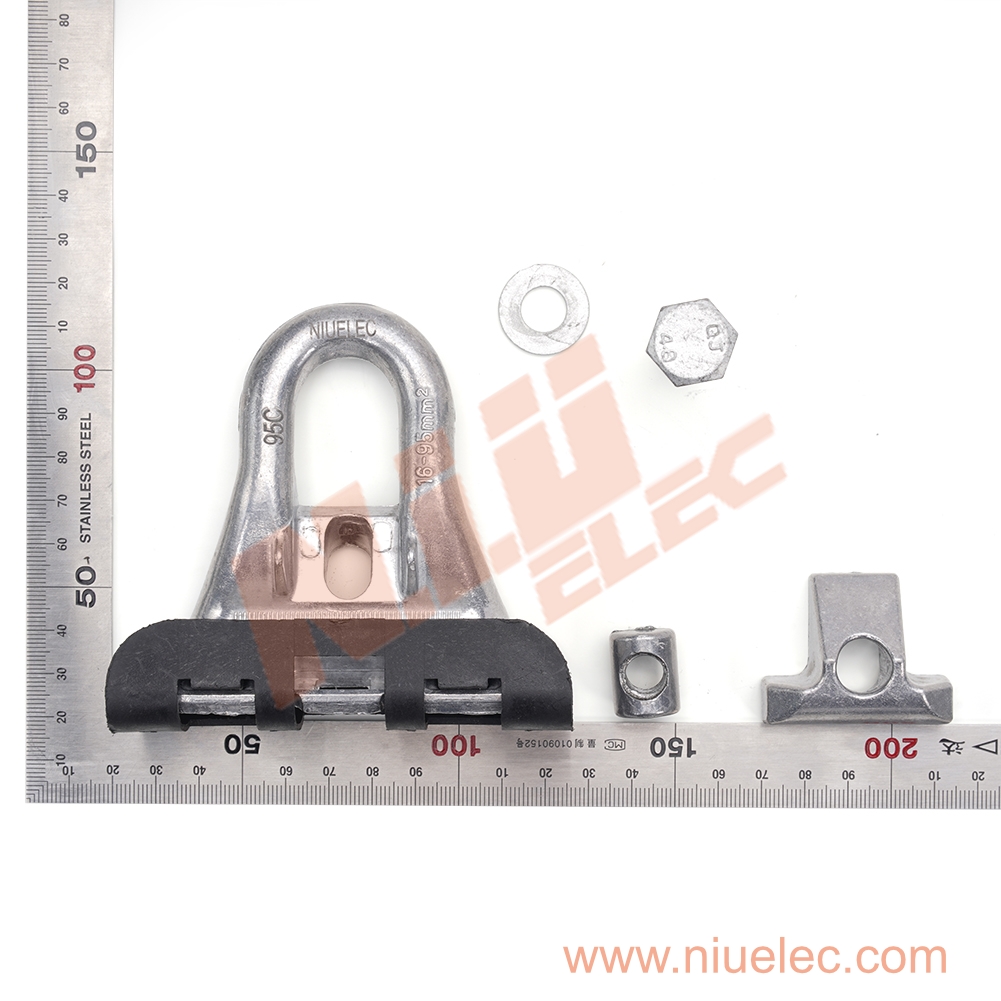

95C Metal suspension clamp

Item No.: 312
Description

Application:
The 95C Metal suspension clamp is used to hang LV-ABC cables on poles with the insulated neutral messenger.

Feature:
1) Cutting section is universal, and insulated line is fixed by nut. The part connecting the wire is made of dielectric material.
2) Hanging the self-supporting insulated wire on the bracket with maximum angle of 90 degrees.
3) Standard: EN 50483-4 , NFC 33-040




Item No. Cross section(mm2) Conductor(mm) Breaking load
95C 25-95 7.5-16.5 12KN
