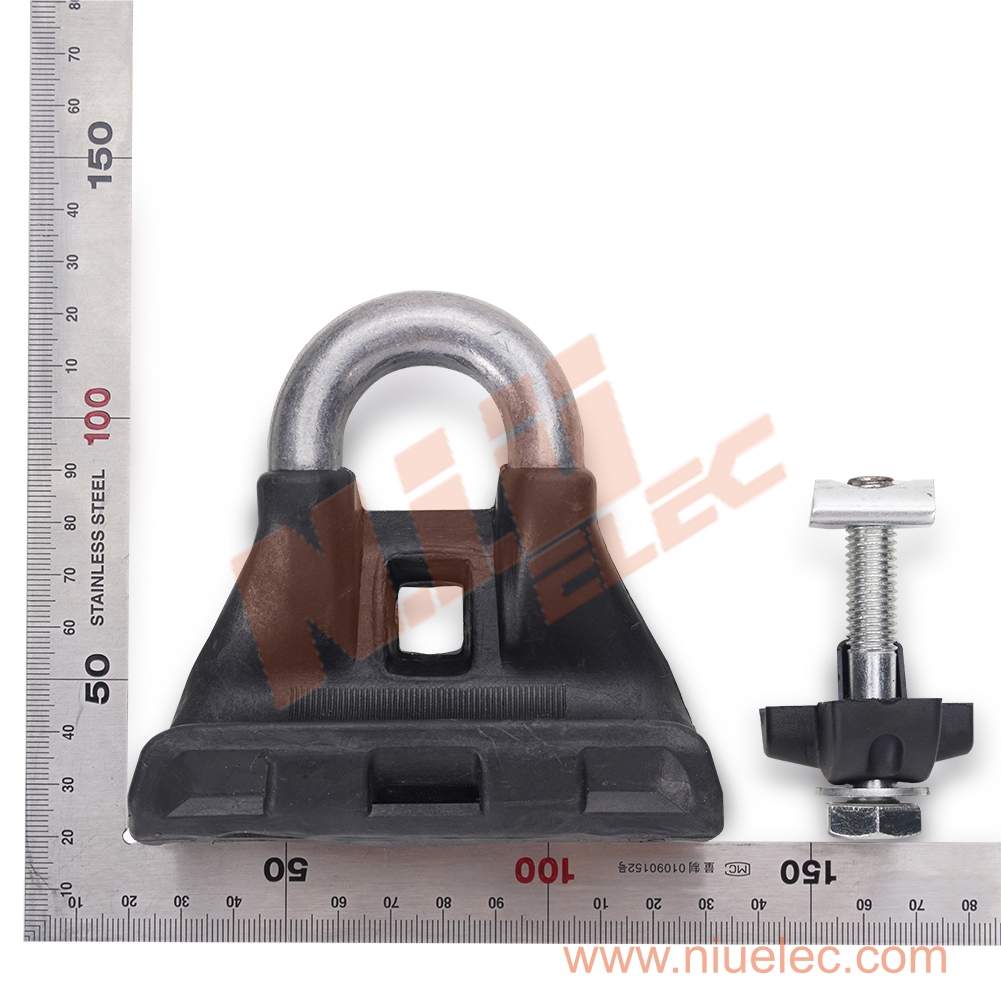

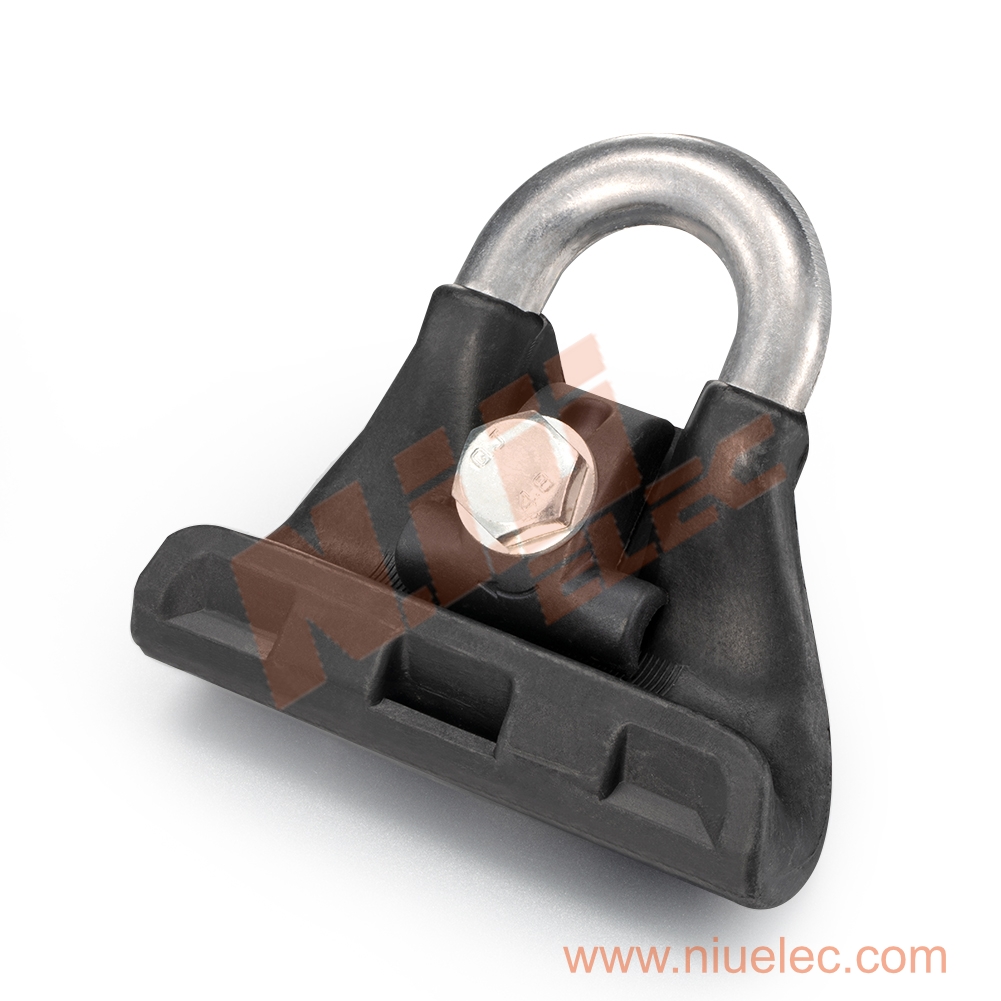

95A Metal suspension clamp

Item No.: 310
Description

Application:
The 95A suspension clamps is used to hang LV-ABC cables on poles with the insulated neutral messenger.

Feature:
1) Cutting section is universal, and insulated line is fixed by nut. The part connecting the wire is made of dielectric material.
2) Hanging the self-supporting insulated wire on the bracket with maximum angle of 90 degrees.
3) Standard: EN 50483-4 , NFC 33-040





Item No. Cross section (mm2) Conductor(mm) Breaking load
95A 25-95 7.5-16.5 10KN
