Silicon Rubber Busing Boot Up to 17.5kV (RCAB)

Description
Features:
• Tool free application
• High-performance insulation material
• Excellent track and erosion resistance
• Removable and reinstallable

Bebefuts:
• Simple and easy installation
• Unlimited shelf life
• Connection can be energised immediately after installation
• One product for inline and right angle application

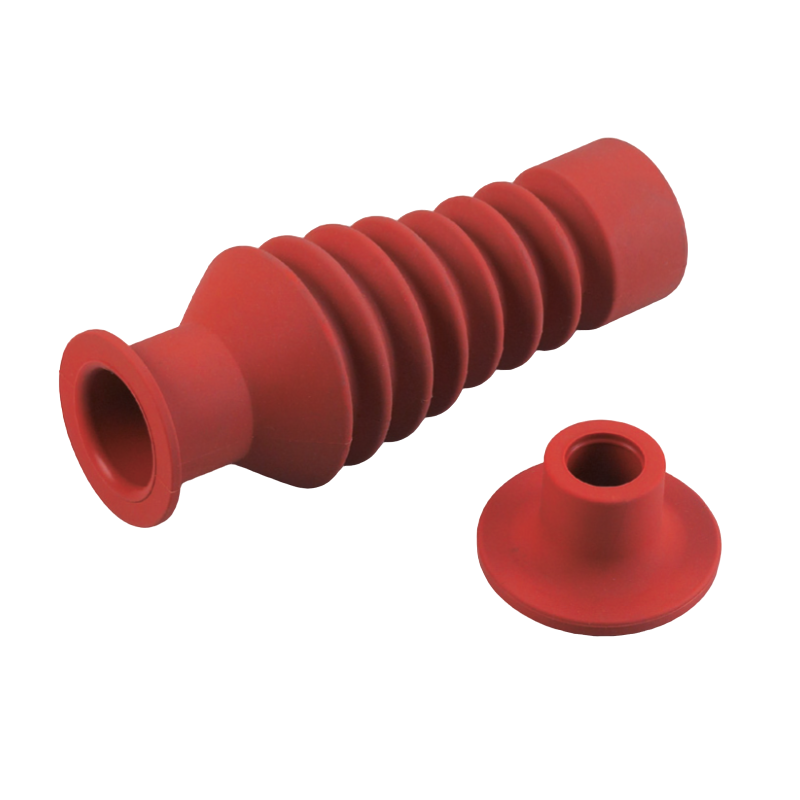

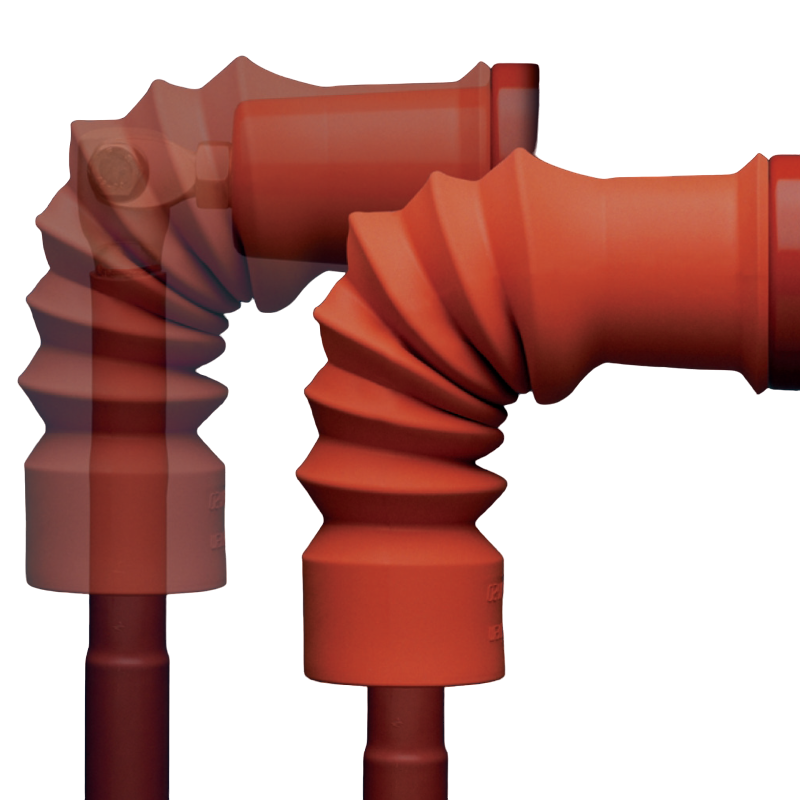

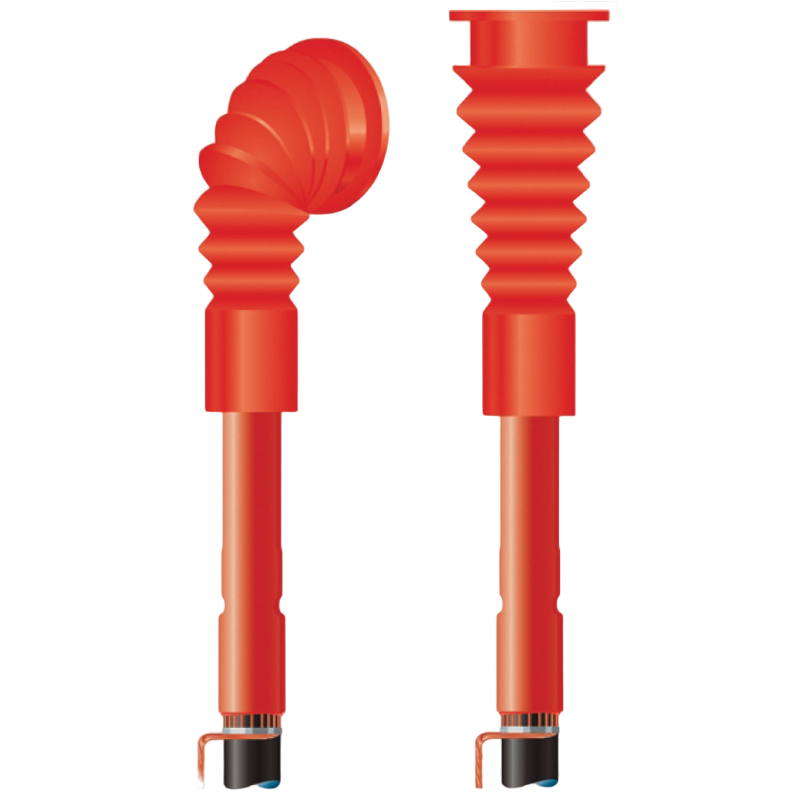

RCAB elastomeric insulating boots are moulded parts which fit over the connection between the cable lug and the inline or right-angled equipment bushing to improve phase-to-phase and phase-to-ground insulation. They are used in switchgear and transformer cable boxes where the air clearances are insufficient for normal operation, or to protect against flashover due to rodents or high humidity.

The non-tracking elastomeric housing has excellent erosion resistance, dielectric properties and environmental resistance, giving superb performance in areas of high humidity and electrical stress

RCAB boots are quick and easy to install and do not require any taping of the bushing or the termination. The boot can easily be removed and reinstalled without the need for additional material or tooling, allowing access to the bushing connection for test purposes
