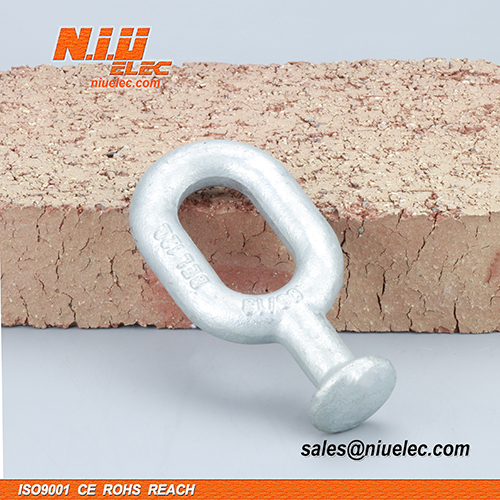

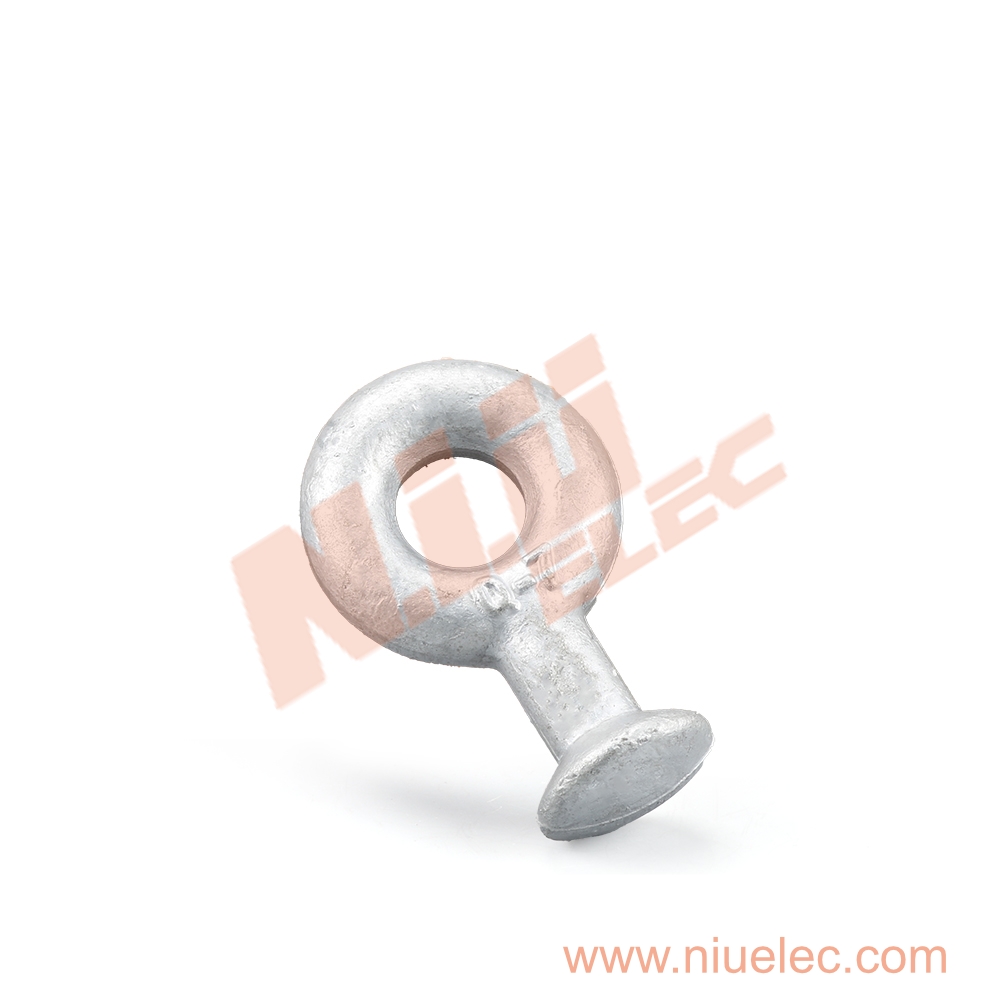

Q-7 Ball Eye

Description

Q-7 Ball Eye Link fittings are used to link clamps to insulator and ground wire clamp to tower arms or subjection structures.Link fitting have special type and common type in accordance condition.The special type includes the ball-eye and socket-clevis linking with insulator.The common type is usually pin connected type.They have different grades according to the load and are exchangeable for the same grade.





Type Dimensions(mm) Failure Load(KN) Weight(Kg)
D1 D2 d b h1 h2
Q-7 33.3 17 22 16 50 13.4 70

0.3
