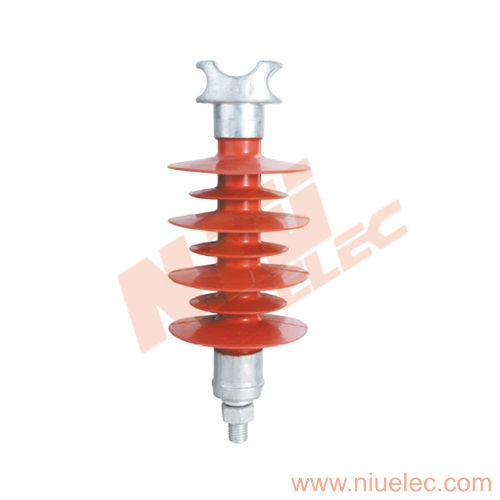

Pin-type composite Insulator

Description

Application:
This product is applied to high voltage power line service.

Features:
Good gydrophobicity, anti-aging, anti-leakage trace, electric erode proof,tensile strength and bending strendth, strong mechanical strength,shock resistance, good quakeproof,brittle failure proof,light weight.

Advantage:
1) Easy to installation.
2) The installation size of top and base are the same size with porcelainp in type, they can exchange to use each other.

Product Model Rated Voltage Rated mechanical Bending Load(KN) Structure Height H.(mm) Insulating Distance Li.(mm) Min Creepage Distance(mm) Lightning Impulse Withstand Voltage(peak) (kv) P.F.withstand Voltage (virtual value)(kv)
FPQ-10/4T20 10 4 215 125 280 75 42
FPQ-10/5T20 10 5 250 165 370 105 42
FPQ-24/6 24 6 305 255 715 150 75
FPQ-36/8 36 8 440 360 1100 185 95
FPQ-52/12 52 12 480 415 1255 220 110
