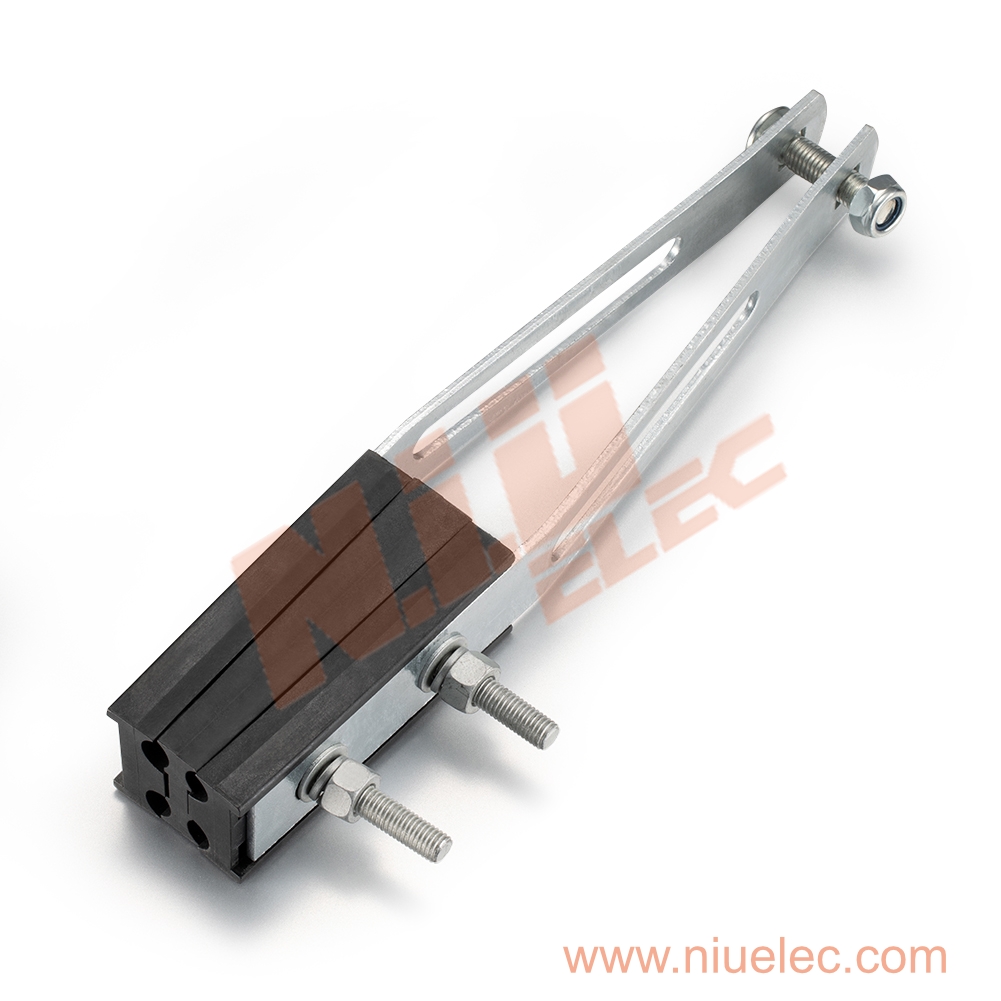

PAT16-95H PAT50-120H 4-core Collection Tension Clamp

Description
Applicaiton:
The PAT16-95H  PAT50-120H Collection tension clamp are applicable to four core self-supporting LV- ABC system.It is used for anchoring
and tightening insulated conductors.

Feature:
1.Strong springs are applied between wedges which facilitates the insertion of conductors.
2.Clamp is made of weather resistant material and hot-dip galvanized steel.


Item No. Cross section(mm2) Breaking load
PAT16-95H  4X(16-50) 20KN
PAT50-120H 4X(50-120) 30KN
