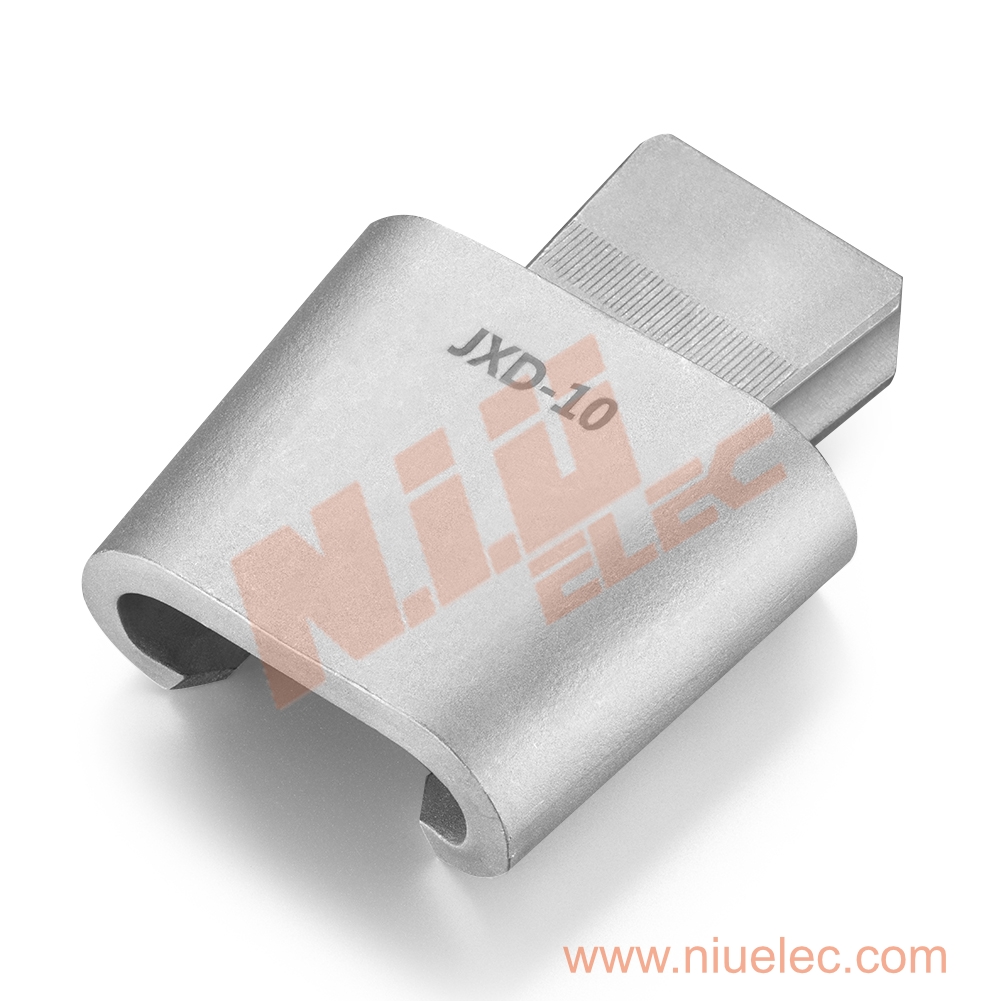

JXD Aluminium Cable Connector

Description

Application:
JXD series wedge damp is suitable for no-bearing connecting of conductor for overhead dis1ribution circuit, also for ma1ing aluminum connection, overhead insulation aluminum core wire, insulation sheath or clamp. It takes effect on protection.


Features:
1、No magnetic material, without electric energy wasting, it can get the goal of saving energy.
2、Good contacting performance, big contacting surface for wedge elastic clamp and conductor, stable clamping force,
the rate of DC resistance is 0.85-0.9.
3、Strong overload capacity, wedge elastic clamp and over load capacity is 2 times of rated current.
4、Reliable connection, no dropping for ever.
5、Good thermal circle performance, operating under the rate of DC resistance for less than 1 all the time.
6、Gain the aim of free maintenance, no-failure and long life.
7、Suitable for kinds of conductor composite, strong applicability, mating insulation sheath, it realizes circuit insulation.
● Withstand voltage: ≥18kv keep voltage one minute not breakdown
● Insulation resistance:> 1.0X1014Ω
● Environments temperature:-30℃-90℃
● Weather proof performance: have good performance after 1008 hours artificial climate aging lest.
