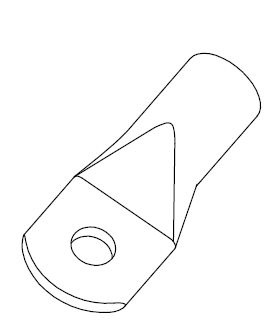

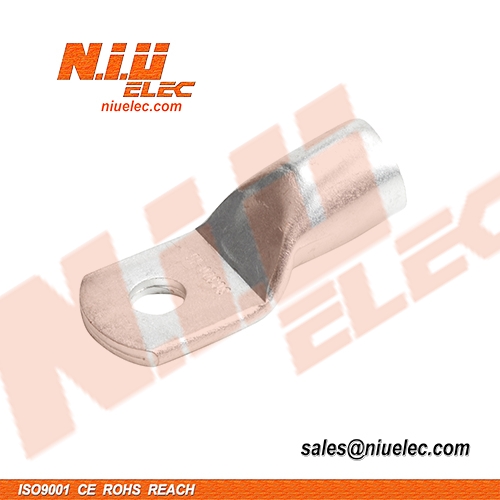

JGA Copper Crimp Lug

Description

Application:
JGA Copper Copper Crimp Lugs are suitable for the connection of copper conductors(section 6-630mm2) in power cable with electronic equipment.

Features:
1.Have a viewing window to check the location of the conductor.
2.Material: CU≥99.9%
3.Surface: electro tin plated





Item No

Φ±0.5

D±0.5

d±0.3

L±2

Weight(g)

SC( JGA)- 6

Φ6.5 , Φ8.5

6.0

4.8

24.5

1.9

SC ( JGA) - 10

Φ6.5 , Φ8.5

6.6

5.2

27.0

2.2

SC (JGA) - 16

Φ6.5 , Φ8.5 , Φ10.5

8.0

6.1

31.0

4.5

SC ( JGA) - 25

Φ6.5 , Φ8.5 , Φ10.5

9.0

6.8

33.0

6.2

SC ( JGA) - 35

Φ6.5, Φ8.5 , Φ10.5

10.5

8.5

38.0

9
SC ( JGA) - 35 Φ12.5 11.0 8.8 38.0 9

SC ( JGA) - 50

Φ8.5 , Φ10.5 , Φ12.5

12.5

10.1

45.0

14.8

SC ( JGA) - 70

Φ8.5 , Φ10.5 , Φ12.5

14.5

12.0

49.0

21

SC ( JGA) - 95

Φ8.5 , Φ10.5, Φ12.5, Φ14.5

17.0

13.8

56.0

34

SC ( JGA) - 120

Φ10.5 , Φ12.5

19.0

15.5

61.0

52

SC ( JGA) - 150

Φ10.5, Φ12.5, Φ14.5,Φ16.5

21.0

16.8

68.0

67

SC ( JGA) - 185

Φ12.5, Φ14.5, Φ16.5

24.0

18.9

76.0

103

SC(JGA) - 240

Φ12.5, Φ14.5, Φ16.5

26.9

21.5

89.0

154

SC(JGA) - 300

Φ16.5

30.0

23.9

98.0

210

SC ( JGA) - 400

Φ16. 5

31.9

25.7

110

300

SC ( JGA) - 500

Φ20. 5

38.0

30.0

116

425

SC ( JGA) - 630

Φ20. 5

45.0

36.3

135

650
