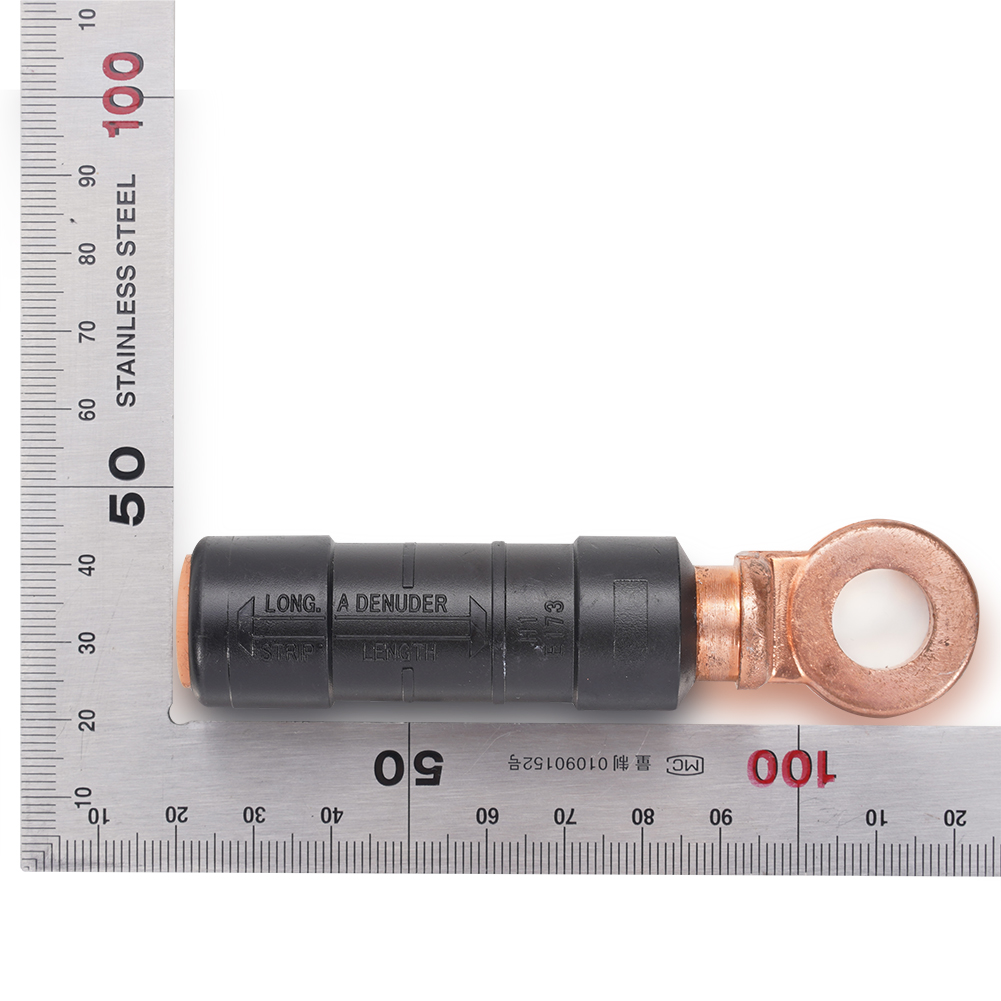

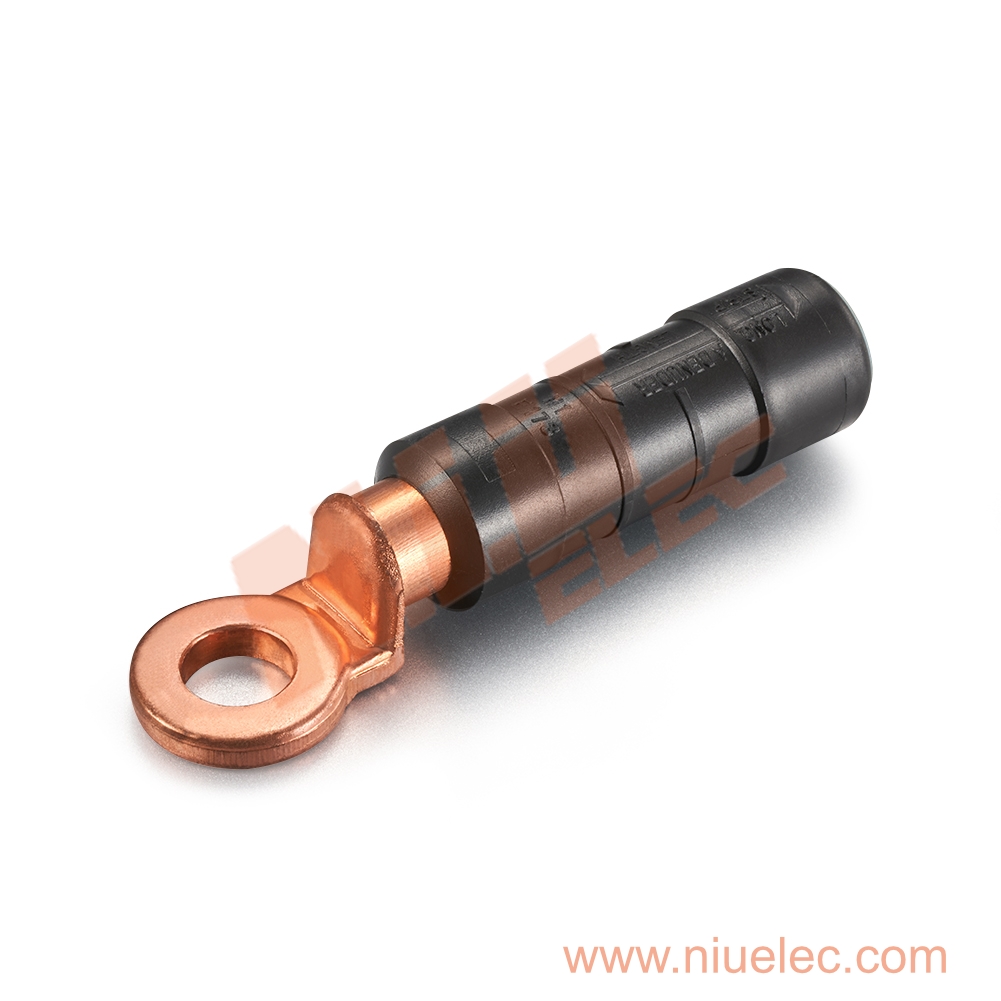

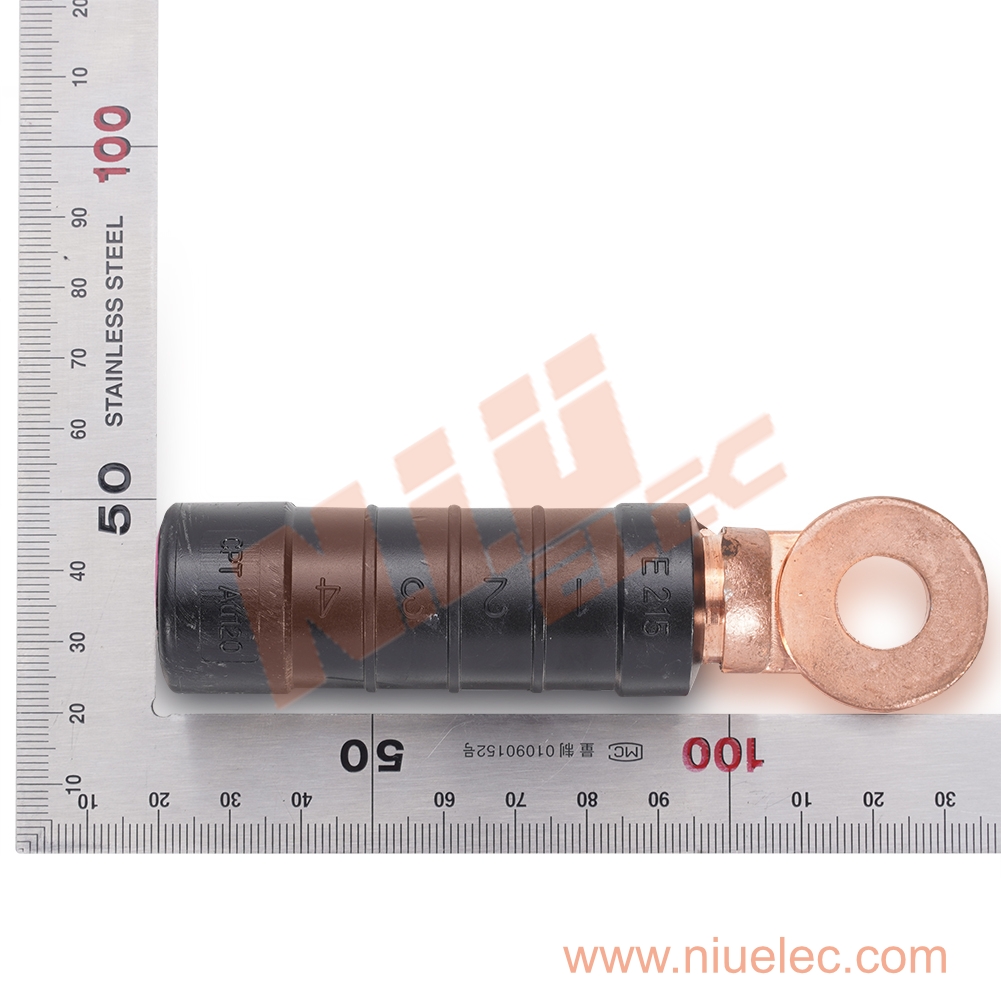

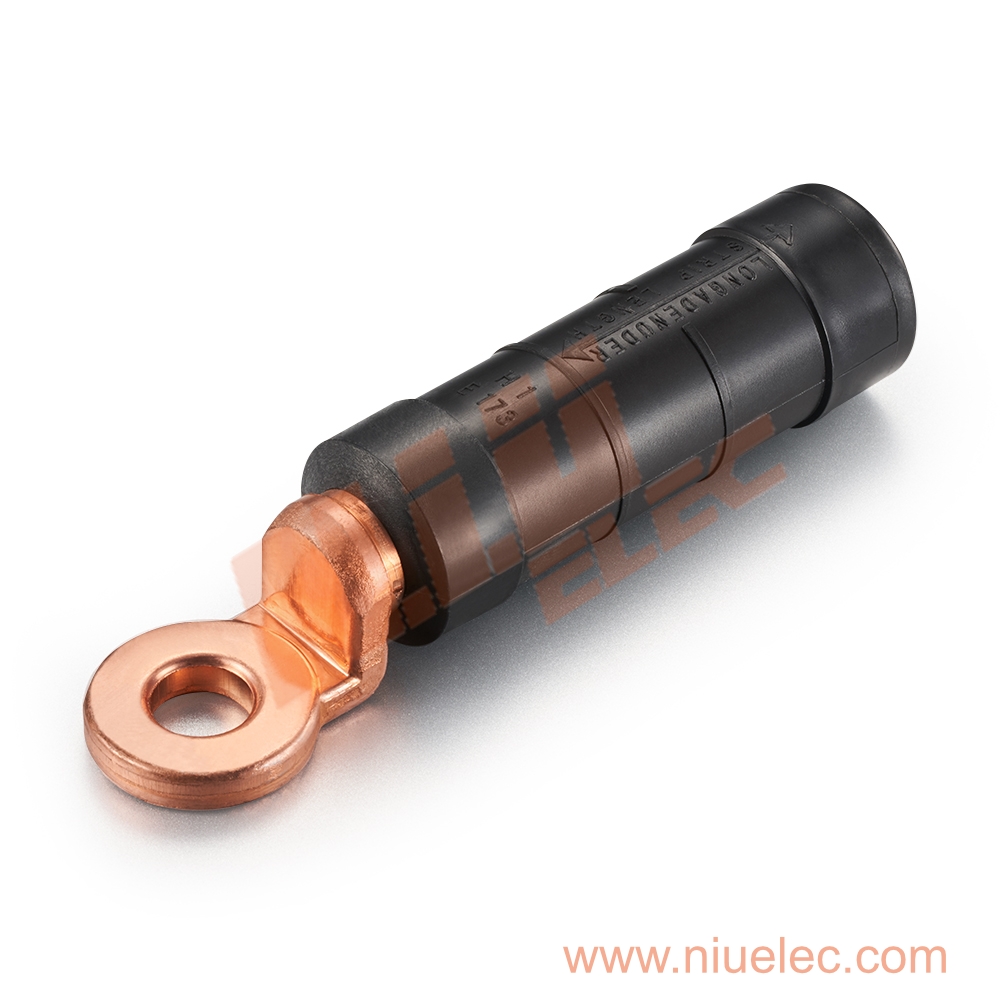

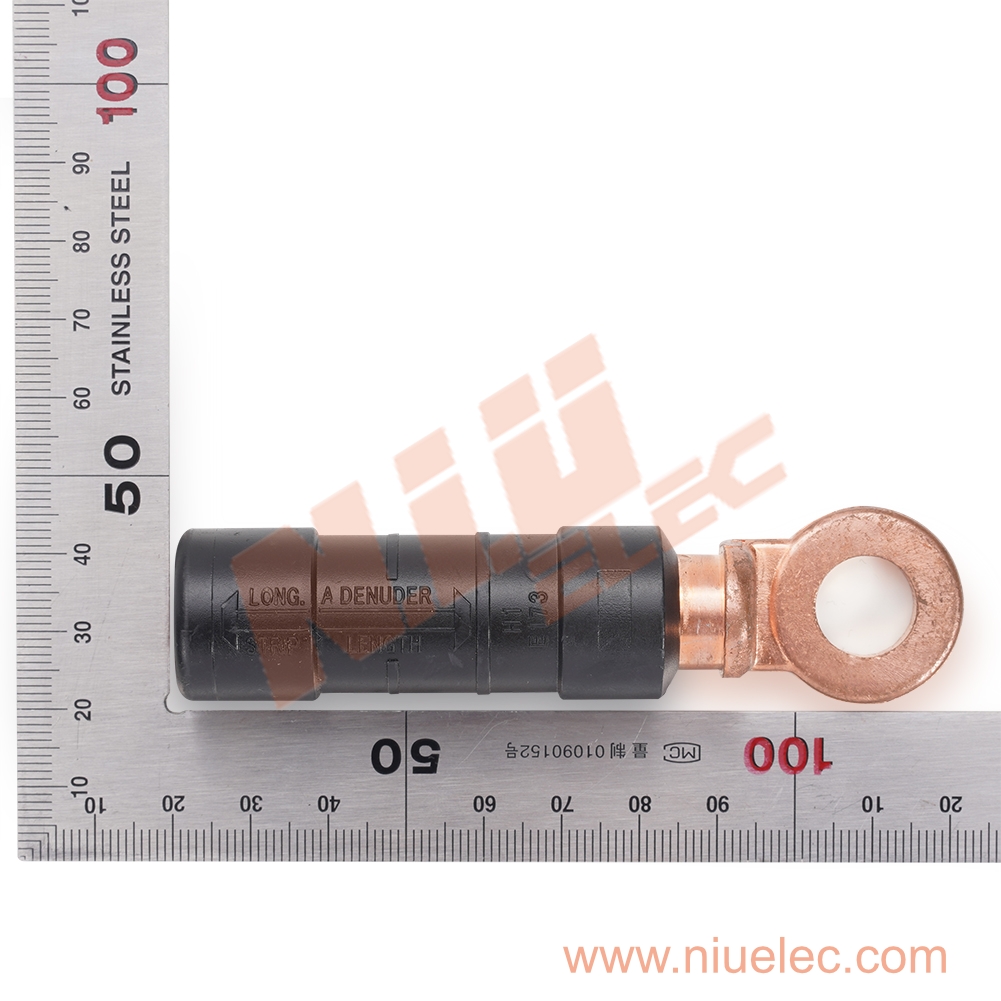

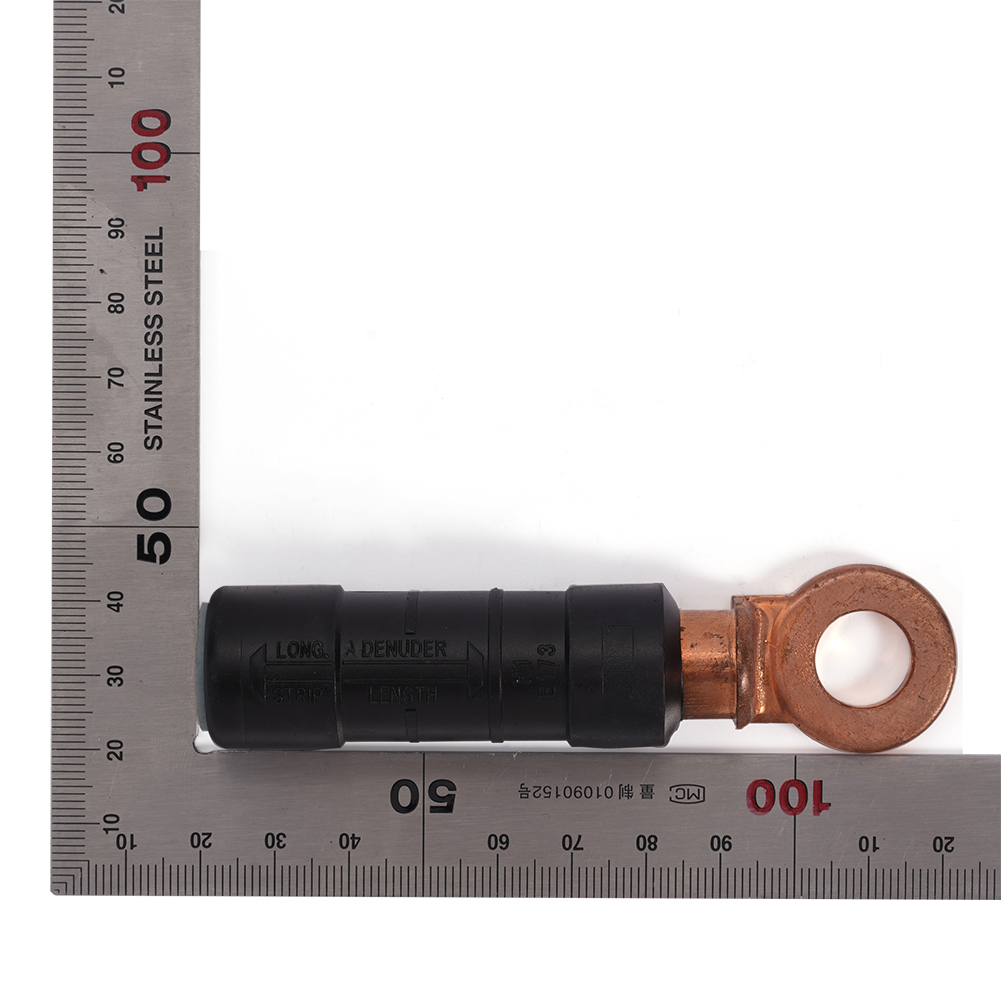

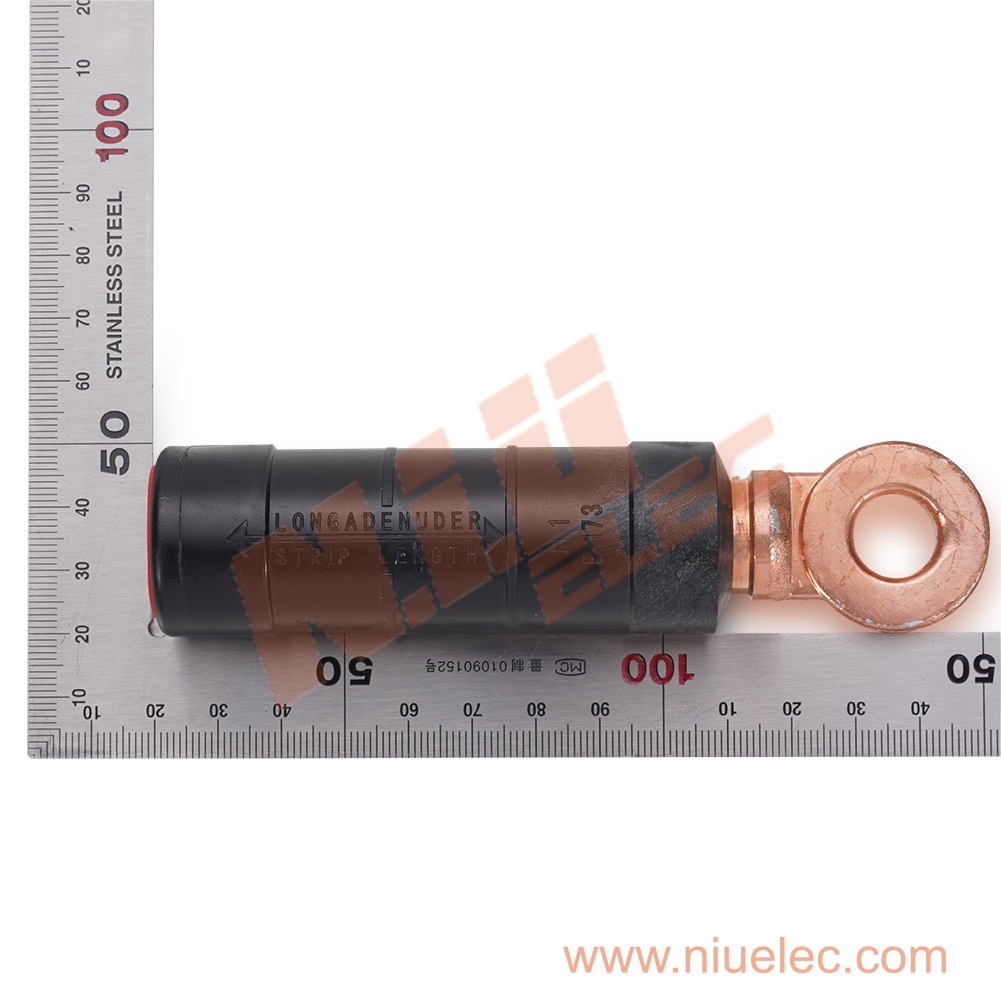

The DTL-4 pre-insulated bimetal lug is used to establish connection between LV-ABC cable and electrical equipments.
1. Palm is made of 99.9% pure copper and sleeve is made of 99.6% pure aluminium.
2. Cross-section of conductor can be easily identified by the color code of elastomeric rings.
3. Elastomeric ring and pre-filled grease enable super waterproof performance.
4. Watertightness test carried out at 6kV for 1 minute under water.
5. Insulation tube is made of weather and UV resistant polymer.
6. Standard: EN 50483-4 ,NFC 33-021
|Item No.||φ||C||B||L||Color code|
