Forging a Greener Grid: The Critical Role of Bimetallic Cable Connectors for Every Renewable Energy
The global shift towards renewable energy is not just a trend; it is a fundamental transformation of our power infrastructure. Solar farms, vast wind turbines, expansive battery energy storage systems (BESS), and a network of electric vehicle (EV) charging stations are rapidly becoming the backbone of a sustainable future. This explosive growth places immense pressure on every component within the system, especially the critical connection points that channel immense electrical currents. In this high-stakes environment, the choice of a cable connector is no longer a minor detail. A reliable cable connector manufacturer is therefore not just a vendor but a pivotal partner in ensuring the safety, efficiency, and long-term viability of these multi-million-dollar assets.The challenge is often technical and material-based. Renewable projects commonly use large-gauge aluminum cables for their cost and weight benefits but must connect them to copper components like busbars and circuit breakers. This junction of different metals is a common failure point, prone to galvanic corrosion and thermal stress. Advanced bimetallic cable lugs solve this issue by creating a reliable bridge between the two materials. But their value goes beyond a simple fix. A well-designed connector benefits all stakeholders in a renewable energy project, from initial design to long-term operation. This article explores how one high-quality component can address the needs of design engineers, procurement managers, installers, maintenance teams, and environmental certifiers.
First is the problem of thermal expansion. Aluminum and copper expand and contract at different rates when heating and cooling under electrical load. A poorly designed bimetallic connector can loosen over time, increasing resistance, generating more heat, and creating a dangerous thermal runaway cycle. Second, electrochemical corrosion, also known as galvanic corrosion, is a constant threat. When two different metals are in contact in the presence of an electrolyte (like moisture), one will corrode preferentially. This can degrade the connection, leading to power loss and eventual failure. Third is structural and dimensional integrity. Engineers need connectors with precise and consistent dimensions to ensure a perfect fit within enclosures and to correctly specify crimping tools and dies.

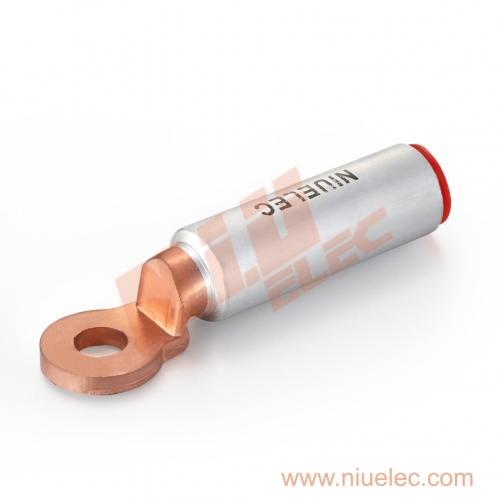

Advanced bimetallic lugs address these challenges directly through superior manufacturing. By employing a friction welding process, a solid-state molecular bond is formed between the high-purity copper palm and the aluminum barrel. This is not a simple mechanical crimp or a brittle brazed joint; it is a homogenous, fused transition that eliminates the sharp interface where corrosion and stress fractures typically begin. Furthermore, offering a comprehensive size range, from smaller 10mm² wires to massive 630mm² cables, allows engineers to specify the exact component for the application without compromise. This precision optimizes the design cycle, reduces the risk of specifying an improper part, and minimizes the likelihood of costly and time-consuming rework later in the project.
A common pitfall is focusing solely on the upfront unit price of a connector. Cheaper, mechanically joined or poorly welded bimetallic lugs may save a few dollars per unit, but they present a massive hidden cost. When these components fail prematurely, the expense of replacement parts is dwarfed by the cost of labor, equipment rental, and, most significantly, lost revenue from asset downtime. This is where the concept of Lifecycle Cost (LCC) becomes paramount. A high-quality, friction-welded lug designed for a 25-year service life drastically reduces the frequency of replacement, leading to a much lower total cost of ownership.
Moreover, in today's business climate, procurement is about more than just economics. Environmental, Social, and Governance (ESG) metrics are increasingly important. A leading cable connector supplier can support these goals. By using recycled aluminum and copper in their manufacturing processes, they help lower the project’s overall embodied carbon footprint. For procurement managers, this is a powerful value proposition. They can deliver a component that is economically superior over its lifespan while simultaneously contributing positively to the project’s sustainability credentials, satisfying both financial and corporate responsibility objectives. A stable, high-volume supply chain from a reputable manufacturer also de-risks the project schedule, ensuring that large-scale installations are not delayed by component shortages.
Three common frustrations for installers are preparation time, the risk of incorrect application, and on-the-job safety. Traditional installations require the technician to manually abrade the aluminum conductors, apply a separate antioxidant grease, and then make the connection, all while ensuring no contaminants enter the joint. This is a slow, messy, and error-prone process. A dropped container of grease or a forgotten application step can compromise a connection that will not show signs of failure for months or years.
Modern bimetallic lugs are designed with the installer in mind. Top-tier models come with the aluminum barrel pre-filled with a high-performance antioxidant compound. This grease breaks through the oxide layer on the aluminum strands during crimping and prevents re-oxidation, ensuring a low-resistance, long-lasting connection. The barrel is then sealed with a protective end cap, which keeps the grease clean and contained until the moment of installation. This eliminates several steps, reduces mess, and standardizes the quality of every connection. Standardized barrel dimensions and clear markings for cable size and crimp locations further simplify the process, ensuring the correct die is used for a perfect, reliable crimp every time. These features collectively shorten installation time, reduce material waste, and significantly lower the risk of human error, leading to a safer and more productive work site.
The key concerns for an O&M team are corrosion resistance, long-term performance stability, and mechanical strength. Connections are constantly subjected to vibration, temperature cycles, and exposure to the elements. A weak connection will inevitably degrade, leading to hotspots that can be detected with thermal imaging but are often difficult and dangerous to access for repair. The difficulty of replacing a single lug inside a tightly packed electrical cabinet can be immense, requiring a scheduled shutdown and specialized labor.
This is where the initial investment in a superior bimetallic lug pays its greatest dividends. The robust friction weld is inherently resistant to the galvanic corrosion that plagues lesser connectors. The pre-filled antioxidant grease permanently protects the aluminum conductor from oxidation. The use of high-purity, solid metals provides the mechanical strength needed to withstand decades of physical stress without fatiguing. For O&M teams, this translates into extended maintenance intervals, fewer emergency callouts, and greater confidence in the long-term health of the asset. The goal is to install a connector and forget about it, and a premium bimetallic lug makes that a reality, safeguarding revenue and ensuring predictable performance.
For these bodies, the details matter. They scrutinize the supply chain to understand where materials originate and how they are processed. The use of virgin raw materials carries a high carbon penalty, while the use of recycled content is highly rewarded. The longevity and end-of-life plan for components are also key considerations. A product that must be replaced multiple times during a project's life creates unnecessary waste and emissions.
A manufacturer of high-performance bimetallic lugs can be a valuable partner in this certification process. By prioritizing the use of recycled copper and aluminum, they significantly reduce the embodied carbon of their products. By designing a connector with a service life that matches or exceeds the 25-year lifespan of the asset itself, they align with the principles of durability and waste reduction. Furthermore, progressive manufacturers may support or facilitate recycling programs for their products at the end of a project’s life, helping to close the loop and promote a circular economy. This documented commitment to sustainability provides tangible evidence that helps a project achieve higher certification ratings, which can unlock preferential financing, enhance public perception, and affirm the project's genuine commitment to environmental stewardship.
Table of contents：
The Blueprint for Success: Empowering Design Engineers
The Bottom Line and Beyond: A Win for Procurement Managers
On-Site Efficiency and Safety: Simplifying Work for Installation Teams
Long-Term Reliability: Peace of Mind for Operations & Maintenance (O&M) Teams
Meeting the Green Standard: Aiding Environmental and Certification Bodies
The Blueprint for Success: Empowering Design Engineers
For design engineers, the primary goal is to create a system that is robust, reliable, and free from latent defects. Their work on paper and in CAD software dictates the long-term performance of the entire project. When it comes to electrical connections, they face three primary pain points that can undermine their designs.First is the problem of thermal expansion. Aluminum and copper expand and contract at different rates when heating and cooling under electrical load. A poorly designed bimetallic connector can loosen over time, increasing resistance, generating more heat, and creating a dangerous thermal runaway cycle. Second, electrochemical corrosion, also known as galvanic corrosion, is a constant threat. When two different metals are in contact in the presence of an electrolyte (like moisture), one will corrode preferentially. This can degrade the connection, leading to power loss and eventual failure. Third is structural and dimensional integrity. Engineers need connectors with precise and consistent dimensions to ensure a perfect fit within enclosures and to correctly specify crimping tools and dies.
Advanced bimetallic lugs address these challenges directly through superior manufacturing. By employing a friction welding process, a solid-state molecular bond is formed between the high-purity copper palm and the aluminum barrel. This is not a simple mechanical crimp or a brittle brazed joint; it is a homogenous, fused transition that eliminates the sharp interface where corrosion and stress fractures typically begin. Furthermore, offering a comprehensive size range, from smaller 10mm² wires to massive 630mm² cables, allows engineers to specify the exact component for the application without compromise. This precision optimizes the design cycle, reduces the risk of specifying an improper part, and minimizes the likelihood of costly and time-consuming rework later in the project.
The Bottom Line and Beyond: A Win for Procurement Managers
Procurement managers are tasked with a complex balancing act. They must secure components that meet strict technical specifications while also controlling costs and ensuring a stable, reliable supply chain. Their decisions have a direct impact on both the project's initial budget and its long-term profitability.A common pitfall is focusing solely on the upfront unit price of a connector. Cheaper, mechanically joined or poorly welded bimetallic lugs may save a few dollars per unit, but they present a massive hidden cost. When these components fail prematurely, the expense of replacement parts is dwarfed by the cost of labor, equipment rental, and, most significantly, lost revenue from asset downtime. This is where the concept of Lifecycle Cost (LCC) becomes paramount. A high-quality, friction-welded lug designed for a 25-year service life drastically reduces the frequency of replacement, leading to a much lower total cost of ownership.
Moreover, in today's business climate, procurement is about more than just economics. Environmental, Social, and Governance (ESG) metrics are increasingly important. A leading cable connector supplier can support these goals. By using recycled aluminum and copper in their manufacturing processes, they help lower the project’s overall embodied carbon footprint. For procurement managers, this is a powerful value proposition. They can deliver a component that is economically superior over its lifespan while simultaneously contributing positively to the project’s sustainability credentials, satisfying both financial and corporate responsibility objectives. A stable, high-volume supply chain from a reputable manufacturer also de-risks the project schedule, ensuring that large-scale installations are not delayed by component shortages.
On-Site Efficiency and Safety: Simplifying Work for Installation Teams
The success of a renewable energy project is forged in the field. Installation teams work under tight deadlines and often in challenging environmental conditions. For them, efficiency, safety, and ease of use are not luxuries—they are necessities. The design of a cable connector can either be a major bottleneck or a catalyst for smooth, rapid installation.Three common frustrations for installers are preparation time, the risk of incorrect application, and on-the-job safety. Traditional installations require the technician to manually abrade the aluminum conductors, apply a separate antioxidant grease, and then make the connection, all while ensuring no contaminants enter the joint. This is a slow, messy, and error-prone process. A dropped container of grease or a forgotten application step can compromise a connection that will not show signs of failure for months or years.
Modern bimetallic lugs are designed with the installer in mind. Top-tier models come with the aluminum barrel pre-filled with a high-performance antioxidant compound. This grease breaks through the oxide layer on the aluminum strands during crimping and prevents re-oxidation, ensuring a low-resistance, long-lasting connection. The barrel is then sealed with a protective end cap, which keeps the grease clean and contained until the moment of installation. This eliminates several steps, reduces mess, and standardizes the quality of every connection. Standardized barrel dimensions and clear markings for cable size and crimp locations further simplify the process, ensuring the correct die is used for a perfect, reliable crimp every time. These features collectively shorten installation time, reduce material waste, and significantly lower the risk of human error, leading to a safer and more productive work site.
Long-Term Reliability: Peace of Mind for Operations & Maintenance (O&M) Teams
Once a renewable asset is commissioned, the focus shifts to maximizing its operational uptime for the next 20 to 30 years. The Operations & Maintenance (O&M) team is responsible for this, and their biggest enemy is unplanned downtime caused by component failure. A single faulty connection inside a solar inverter, a wind turbine nacelle, or a BESS container can take the entire asset offline, resulting in significant revenue loss.The key concerns for an O&M team are corrosion resistance, long-term performance stability, and mechanical strength. Connections are constantly subjected to vibration, temperature cycles, and exposure to the elements. A weak connection will inevitably degrade, leading to hotspots that can be detected with thermal imaging but are often difficult and dangerous to access for repair. The difficulty of replacing a single lug inside a tightly packed electrical cabinet can be immense, requiring a scheduled shutdown and specialized labor.
This is where the initial investment in a superior bimetallic lug pays its greatest dividends. The robust friction weld is inherently resistant to the galvanic corrosion that plagues lesser connectors. The pre-filled antioxidant grease permanently protects the aluminum conductor from oxidation. The use of high-purity, solid metals provides the mechanical strength needed to withstand decades of physical stress without fatiguing. For O&M teams, this translates into extended maintenance intervals, fewer emergency callouts, and greater confidence in the long-term health of the asset. The goal is to install a connector and forget about it, and a premium bimetallic lug makes that a reality, safeguarding revenue and ensuring predictable performance.
Meeting the Green Standard: Aiding Environmental and Certification Bodies
In the ecosystem of green energy, verification and certification are crucial. Organizations like LEED (Leadership in Energy and Environmental Design) and BREEAM (Building Research Establishment Environmental Assessment Method) evaluate projects based on a holistic view of their sustainability. This includes assessing the carbon footprint of the materials used and the overall environmental impact across the project's lifecycle.For these bodies, the details matter. They scrutinize the supply chain to understand where materials originate and how they are processed. The use of virgin raw materials carries a high carbon penalty, while the use of recycled content is highly rewarded. The longevity and end-of-life plan for components are also key considerations. A product that must be replaced multiple times during a project's life creates unnecessary waste and emissions.
A manufacturer of high-performance bimetallic lugs can be a valuable partner in this certification process. By prioritizing the use of recycled copper and aluminum, they significantly reduce the embodied carbon of their products. By designing a connector with a service life that matches or exceeds the 25-year lifespan of the asset itself, they align with the principles of durability and waste reduction. Furthermore, progressive manufacturers may support or facilitate recycling programs for their products at the end of a project’s life, helping to close the loop and promote a circular economy. This documented commitment to sustainability provides tangible evidence that helps a project achieve higher certification ratings, which can unlock preferential financing, enhance public perception, and affirm the project's genuine commitment to environmental stewardship.
A bimetallic cable lug may seem like a simple component, but its impact resonates through every phase of a renewable energy project. It is a critical enabler that allows design engineers to build with confidence, procurement managers to achieve both economic and ESG goals, installers to work quickly and safely, and O&M teams to guarantee long-term performance. It is a linchpin that connects not just aluminum to copper, but also the diverse objectives of every stakeholder.For project leaders seeking to unify these benefits and de-risk their investments in clean energy, partnering with a forward-thinking manufacturer is essential. A company like N.I.U ELEC, with its focus on advanced friction-welded bimetallic lugs and a clear understanding of the entire project lifecycle, provides a tangible and powerful solution. To truly forge a greener grid, every connection matters. Contact their team to discuss how their high-performance green energy terminal solutions can strengthen your next project, or inquire about their collaborative recycling programs to close the sustainability loop.
